AP-MFATX70P868 - AP-MFATX70P868

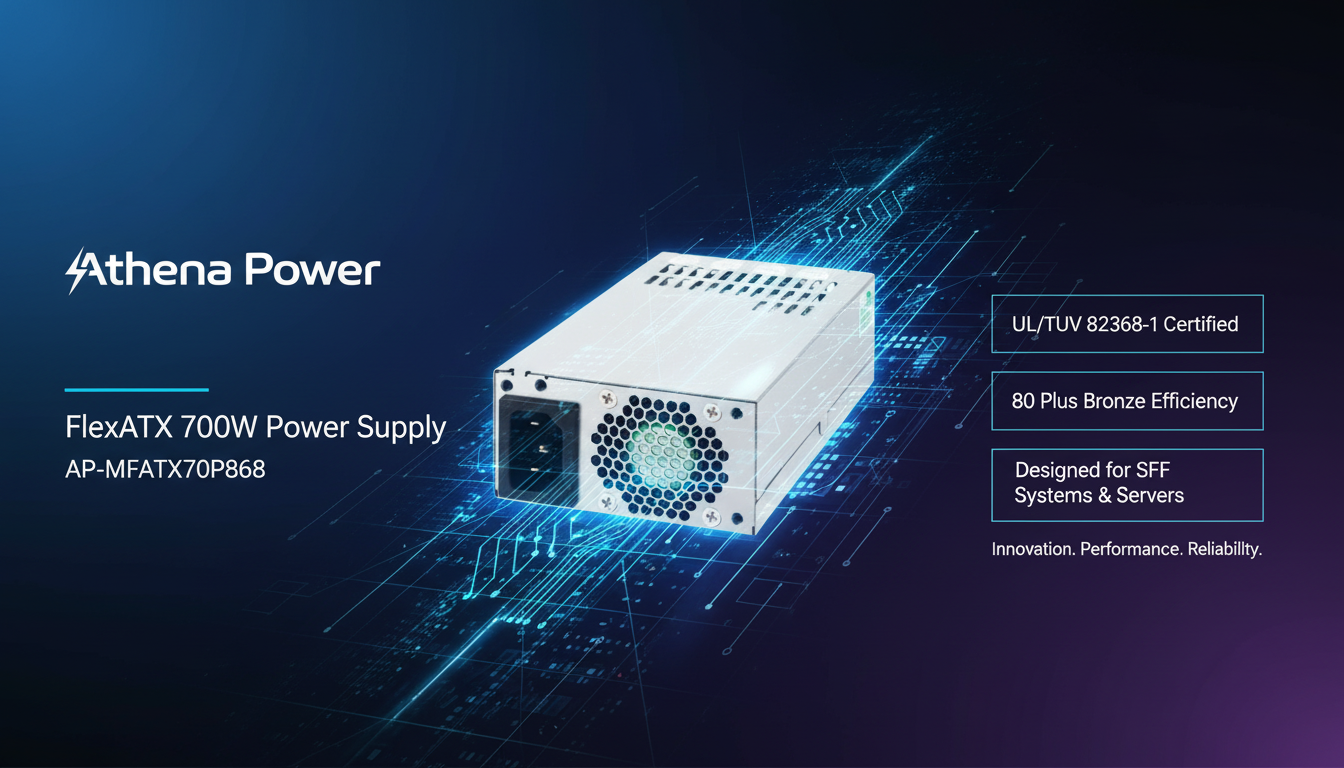

Athena Power is proudly introducing the FlexATX 700W power supply unit that is certified to the latest UL/TUV 82368-1 compliance to the market.
AP-MFATX70P868 is designed for SFF systems, such as a mini-ITX, 1U IPC server or high performance system. The AP-MFATX70P868 is an UL and TUV 62368-1 Complaince certified IPC grade server power supply unit. It also features Active PFC (Power Factor Correction) with Full Range AC Input. AP-MFATX70P868 providing efficiency during max and low loads meets 80Plus Bronze standard.
Main Features
- Efficiency during max and low loads meets 80Plus Bronze standard.
- Remote On/OFF function.
- 100% Hi-pot, ATE and Burn-in tested.
- Exhaust 12V DC fan with thermal fan speed controller.
- Protection Features: Output over voltage, short circuit and overload.
- Complied with FLEX ATX-12V and EPS-12V standard (SLI & Cross Fire ready).
- Active PFC (Power Factor Correction) circuits with Full Range Input meets EN61000-3-2.
- Certified to IEC/UL/CSA/EN 62368-1 safety standards to ensure compliance with the latest regulatory standards in the United States, Canada, and Europe.
- Complied with EMI regulatory: 47 CFR FCC part 15, subpart B, ANSI C63.4:2014.
AP-MFATX70P868 - AP-MFATX70P868
| Model | AP-MFATX70P868 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | Flex ATX | ||||||||||||||
| Product Sub Category | Flex ATX 62368 | ||||||||||||||
| Output Power | 700 Watts | ||||||||||||||
| Input Votage | 90 ~ 264 Volts AC | ||||||||||||||
| Frequency | 47 ~ 63 Hz | ||||||||||||||
| Temperature Range | Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C | ||||||||||||||
| MTBF | 250,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less than 70 ms | ||||||||||||||
| Hold-up Time | 11 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Connectors |
ATX Connector 24(20+4) Pin x 1 EPS-12V 8 Pin x 1, 8(4+4) Pin x 1 PCIE 6+2 Pin x 2 SATA 15 Pin x 3 Molex 4 Pin x 2 + Floppy 4 Pin x 1 |
||||||||||||||
| Dimension | (L x W x H) 150 x 81.5 x 40.5 mm / 6 x 3.2 x 1.59 in | ||||||||||||||
| Weight | 3.75lb | ||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
