RM-4UWIN525 - RM-4UWIN525
SuperSpeed USB3.0/2.0 4U ATX Rackmount Server Chassis
RM-4UWIN525 - RM-4UWIN525
| Model | RM-4UWIN525 |
|---|---|
| Product Category | 4U Rackmount |
| Form Factor | 4U |
| Cage Color | Black |
| Specifications | 19" Rackmount standard |
| MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX (6.7 in. x 6.7 in.) |
| Air Filter | None |
| Drive Bay | 8 x External 5.25" |
| Switch |
Power On/Off Reset |
| Power Supply |
Mini-Redundant 2U Micro Redundant PS2 Single 3U Single |
| Cooling Fan |

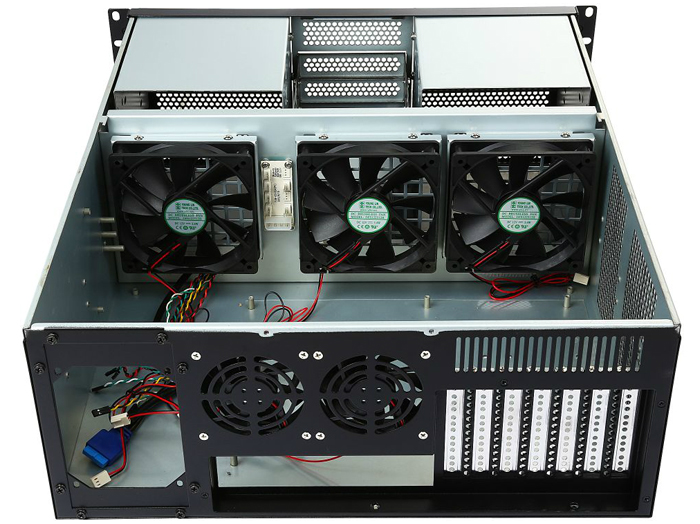

3 x 120mm (Center w/ easy-install & anti-vibration bracket) 2 x 80mm (Rear) |
| Ports | 1 x Front 2-Port USB3.0 |
| Indicators | (LED) POWER / HDD / LAN1 / LAN2 |
| Expansion Slot | Full Height x 7 |
| Material | T=1.2mm SECC |
| Dimension | (D x W x H) 525.1 x 435 x 175.8 (mm) / 20.67 x 17.13 x 6.92 (inch) |
| Weight | 35.00lb |
| Warranty | 1 Year Manufacture Limited Warranty |
RM-4UWIN525 - RM-4UWIN525
RM-4UWIN525 - RM-4UWIN525
| Components |
|---|
| AP-RRP4ATX6808 (Power Supply | Redundant) |
| Components |
|---|
| AP-P4ATX80FEP8 (Power Supply | PS2) |
