RM-2UD220S - RM-2UD220S
Athena Computer Power proudly presents their new smart 2U rackmount. With Athena Power’s space saving design this rackmount comes with a built-in PS3 power supply for all server power needs. With its compact design this 2U rackmount can still house up to a maximum of seven 3.5” HDDs when using a mini-ITX motherboard and installation of backplane BP-SATA2131B. Other features for accompanying its sleek design is the removable front bezel for the 2 x 80mm intake fans, a smart blue hued LCD screen, 4 low profile expansion slots, Green Energy Saving Server function, and vibration reduction stoppers for mounted HDDs.
Smart Function
The 2UD220S offers a new front LCD display that will assist with managing server maintenance. The blue display screen will check the start-up time of the server, the status of all installed HDDs, system temperature, and the rate of speed of the system fan.
Green Energy Saving Server
The patented Green Energy Saving Server uses the server smart function and by detecting the server temperature, it will adjust how many fans are needed in order to accomodate for the heat of the system. This function is adjustable through the LCD display and the default temperature for 1 fan is 30 degrees celsius and for dual fans it will activate at 40.
Space Saving feature
With a reduced depth size this 2U rackmount is perfect for saving space. The size of this rackmount is a viable case for either a micro ATX motherboard or mini-ITX motherboard.
Removable Front Bezel for Easy Maintenance
Attached to the front of the rackmount a removable filter front bezel is included. Positioned in front of the 2x 80mm intake fans, this filter helps guard against dust and dirty that may cause harm to your server system. This bezel is also detachable allowing ITs to easily clean and maintain.
Vibration Reduction
Industrial servers are usually on 24/7 and because of the heavy duty loads vibrations may ripple through the server system. To protect HDDs and create a stable hold on server hard drives, rubber stoppers are mounted on the rackmount’s 3.5” bays. These stoppers help absorb the vibrations caused by heavy loads within servers and can help maintain longevity for hard drives reducing server down time.
RM-2UD220S - RM-2UD220S
Model | RM-2UD220S |
---|---|
Product Category | 2U Rackmount |
Form Factor | 2U |
Cage Color | Black |
Specifications | 19" Rackmount standard |
MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) Mini-ITX (6.7 in. x 6.7 in.) |
Air Filter | Removable & Washable |
Drive Bay |
5.25" x 2 (Open) 3.5" x 2 (Hidden) with ATX MB; or 3.5" x 4 (Hidden) with Micro-ATX MB |
External Bay | 5.25" x2 (External) |
Internal Bay | 3.5" x2 (Internal) |
Switch |
Power On/Off Reset |
Power Supply | Micro PS3 Power Supply Only |
Cooling Fan | 2 x 80mm Ball Bearing Intake Fans |
Ports | 2 x USB Port (Front) |
Indicators | LED's for Power, HDD and LAN |

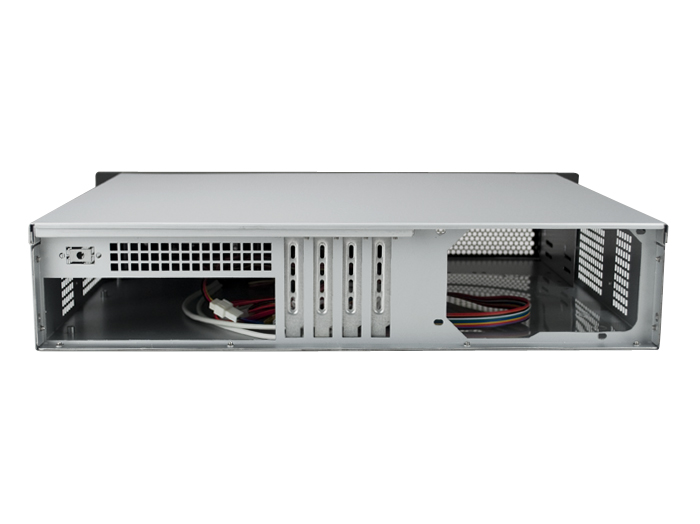

Expansion Slot | 4 Slots (Low Profile Card only) |
Material | 1.2mm Thickness Steel |
Dimension | 19" x 3.5" 14.96" (W x H x D) |
Weight | 13.00lb |
Warranty | 1 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 20.325" x 22" x 7" (W x L x H) |
---|---|
Master Box Weight | 15.00 lbs |
Package Quantity | 1 /Box |
RM-2UD220S - RM-2UD220S
RM-2UD220S - RM-2UD220S
Components |
---|
AP-MPS3ATX40 (Power Supply | Micro PS3) |
Components |
---|
AP-MPS3ATX60EP8 (Power Supply | Micro PS3) |
Components |
---|
AP-MPS3ATX47EP (Power Supply | Micro PS3) |
