Cable-DELL-X - Cable-DELL-X
CABLE-DELL-X extends one 6pin Aux connector from 20 pin ATX connector. 6pin Aux connector is necessary for some of the Dell PCs. Therefore, if you want to assemble your power supply without an Aux connector in the Dell PCs, CABLE-DELL-X can satisfy your need.
ONLY 100% compatible w / AP-MPS3ATX25, AP-MPS3ATX30, AP-MPS3ATX40,
AP-MPS3ATX47E, KW-PS325W, KW-PS340W, JPS3-300, JPS3-400, &
MPS3H4-2507; the other brand name PSUs are not guaranteed.
For DELL SYSTEMS List:
- Dimension 2100, 4100, B1000R, V350, and V400 replace
- Dimension XPS B Series replace
- Dimension XPS Dxxx, XPS Mxxx, XPS Rxxx, and XPS Txxx replace
- Dimension XPS P133c MT and XPS Pro 180n replace
- Dimension L-Series (LxxxR, LxxxCXE, LxxxCX, and LxxxC), replace
- OptiPlex G1 and GX1 tower systems replace
- OptiPlex GX110, GX115, GX300, GN, GN+, GXa, and GXi replace
- PowerEdge 2100 and 2200 replace.
- Precision WorkStation 210, 220, and 400 replace
Cable-DELL-X - Cable-DELL-X
| Model | Cable-DELL-X |
|---|---|
| Product Category | Replacement PSU Converter |
| Product Sub Category | Dell System Converter Cable |
| RoHS Ready | RoHS Ready |
| Cable Length | 6.00inches |
| Warranty | 1 Year Manufacture Limited Warranty |

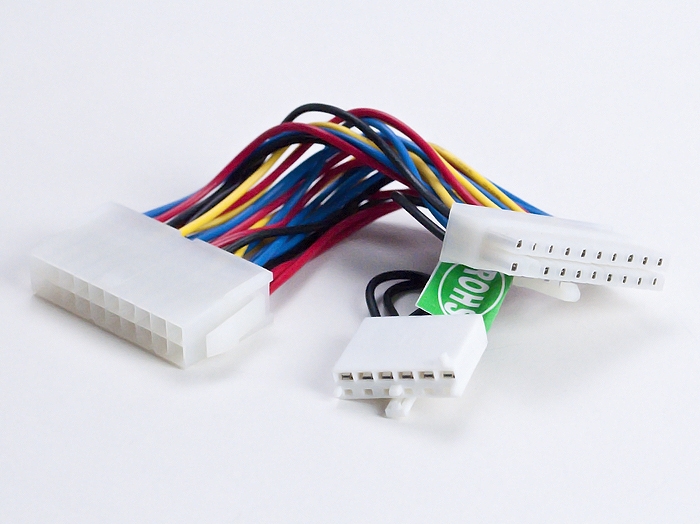

Connector w/ Images:
|
20 pin ATX Male (connect to power supply 20 pin ATX Female) x 1
|
20 pin ATX Female (connect to motherboard) x 1
|
6 pin Aux Female (connect to motherboard) x 1
|
Cable-DELL-X - Cable-DELL-X
Cable-DELL-X - Cable-DELL-X
| Title | Files |
|---|---|
| Cable-Dell-X Cross Reference |
