OUTPUT WATTAGE

• 1200W

BEST SOLUTION FOR

• Server ,Workstation ,Storage System, GPU, GAMING SERVER

DIMENSION

• 220x150x86(mm)
• 8.66x5.91x3.39(inch)

INPUT SPEC

• VOLTAGE: 90 ~ 264 VAC FULL RANGE
• FREQUENCY: 47 ~ 63 Hz.
• STEADY-STATE CURRENT: 15/7.5A AT ANY LOW/HIGH RANGE INPUT VOLTAGE
• INRUSH CURRENT: 20A MAX. FOR 110 VAC , 40A MAX. FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START)
• PFC: UP TO THE TARGET OF 95% @230V, FULL LOAD

FEATURES

• TEMPERATURE RANGE: OPERATING 0℃~40℃; STORAGE TEMPERATURE: -20℃~80℃
• HOLD UP TIME: 18mS MINIMUM AT 90V FULL LOAD & NOMINAL INPUT VOLTAGE
• EFFICIENCY: 83%-88% TYPICAL AT 115V, FULL LOAD
• LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 264VAC
• POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
• OVER POWER PROTECTION: 110%~160%
• OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V1→13.2~15.6V, +12V2→13.2~15.6V
• OVER CURRENT PROTECTION: +3.3V→27.5~37.5A, +5V→ 27.5~37.5A, +12V1→55~75A, +12V2→55~75A
• SHORT CIRCUIT PROTECTION: +3.3V, +5V, +12V1, +12V2, -12V
• SAFETY: TO MEET TUV, CB, RFI/EMI STANDARDS
• EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B

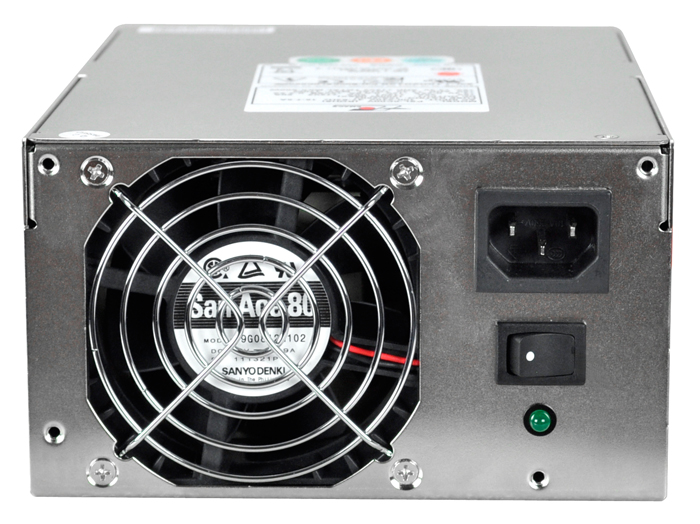

• COOLING: 80mm DC FANS
• I2C FEATURES (OPTIONAL)

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
