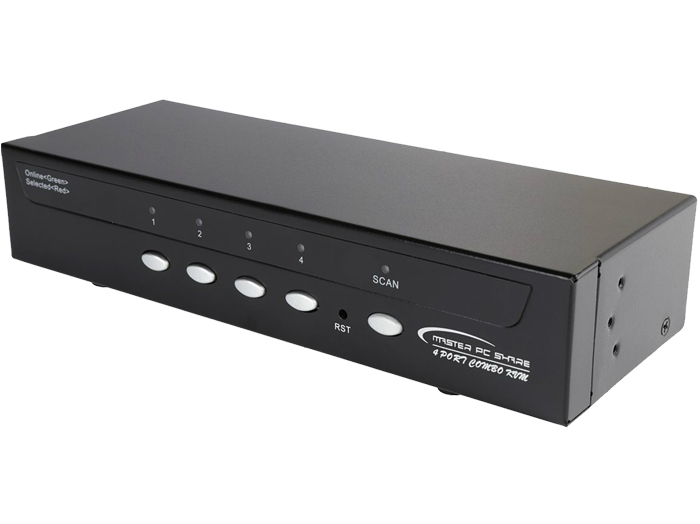

1U Server 4-Port PS2/USB Combo KVM Switch

Athena Power SCK-MPS1604 is a 1U Server 4-Port USB/PS2 Combo KVM Switch.

PRODUCT SPECIFICATIONS

Brand

• Athena Power

Model Number

• SCK-MPS1604

Computer Connection

• Console User: 1
• Direct Control: 4

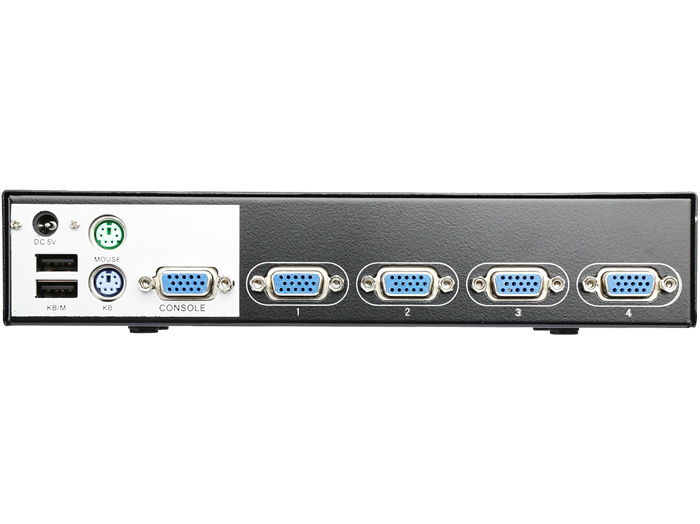

Connection Interface

• Console Connection
  • Keyboard & Mouse: 2 x PS/2 Mini-Din 6-Pin Female; 2 x USB Type-A Female
  • Monitor: 1 x VGA HDB-15 Female
• KVM/Host Connection: 4 x VGA HDB-15 Female

KVM Channel Selection

• Hotkey & Push Button

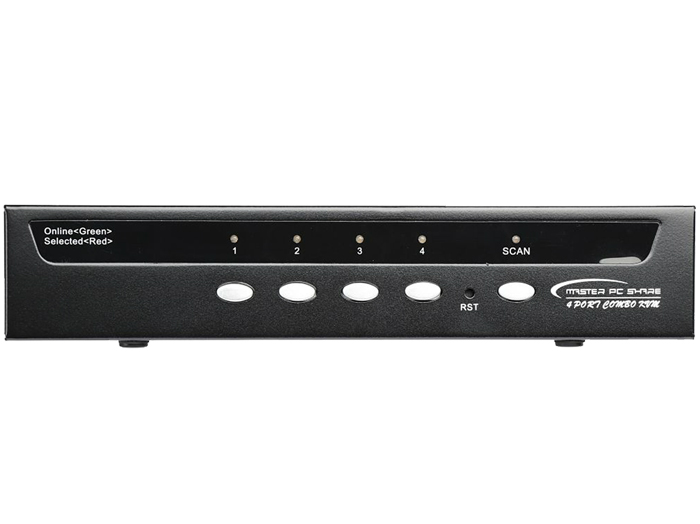

• 4 x Push Button (Front)
• Scan Interval: 5~255 (sec)

Support Video Resolution

• Up to 1920 x 1440 @ 60Hz

Power

• Input Connection: AC/DC Adapter
• DC Input Voltage (unit): 5VDC; 2A
• AC Input Voltage (adapter): 100~240VAC
• AC Input Frequency (adapter): 50/60Hz

Switch & Button

• 1 x Scan (Push Button)
• 1 x Reset (Push Button)
• 4 x KVM Channel Selection (Push Button)

Indicator

• 1 x Scan LED (Green: Power On; Red: Scanning)
• 4 x KVM Channel LED (Green: Online; Red: Selected)

Environmental

• Operating Temperature: 32°F~122°F (0°C~50°C)
• Storage Temperature: 23°F~140°F (-5°C~60°C)
• Relative Humidity: 0~80% RH (non-condensing)

Physical Characteristics

• Rack Height: 1U
• Color: Black
• Enclosure Material: Steel Chassis; ABS Plastic Front Bezel
• Product Dimensions (D x W x H): 3.35 x 8.6 x 1.75 (in); 85 x 219 x 44.45 (mm)
• Product Wight: 2 (lb); 1 (kg)

Packaging Information

• Shipping Dimensions (L x W x H): 11.5 x 7.5 x 5 (in); 29.2 x 19 x 12.7 (cm)
• Shipping Weight: 4 (lb)

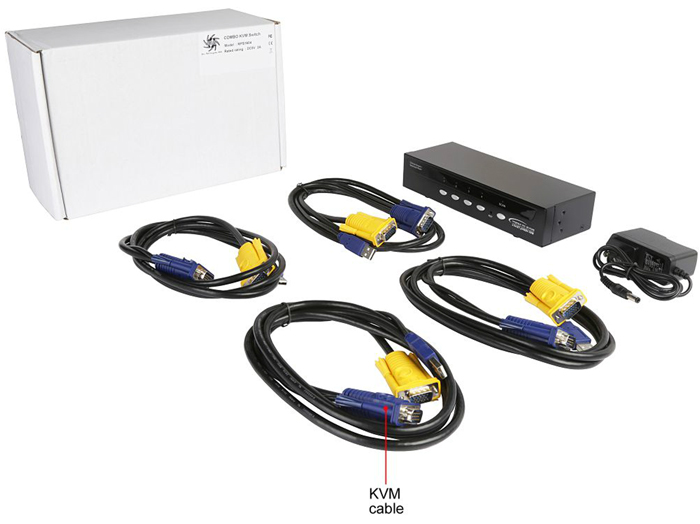

• What’s in the Box:
  • 1 x 4-Port PS2/USB Combo KVM Switch (Model #: SCK-MPS1604)
  • 1 x AC/DC Power Adapter
  • 4 x KVM Cable (HDB15M/USBAM to HDB15M; L=5.9ft)

Warranty Information

• 3-Year Limited
