RM-2U2123HE12 - RM-2U2123HE12

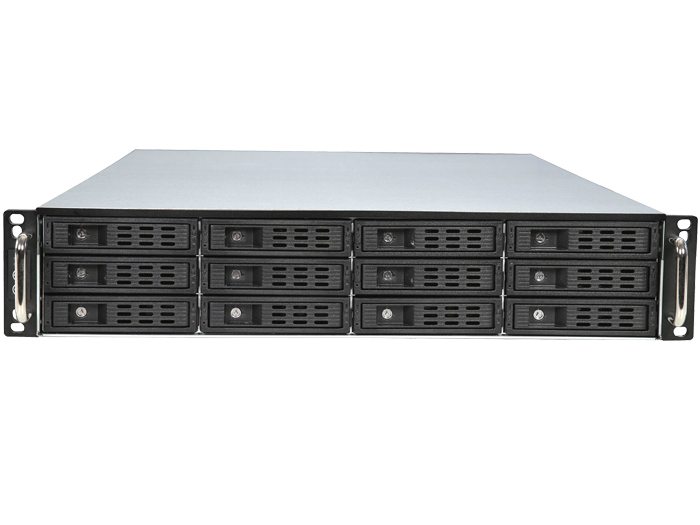

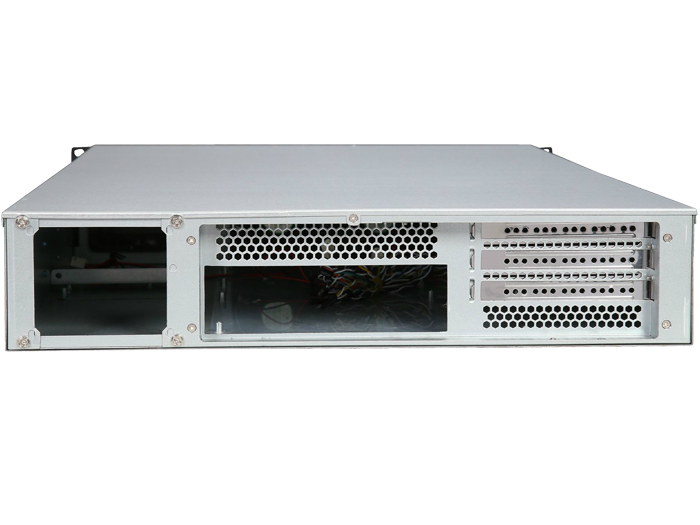

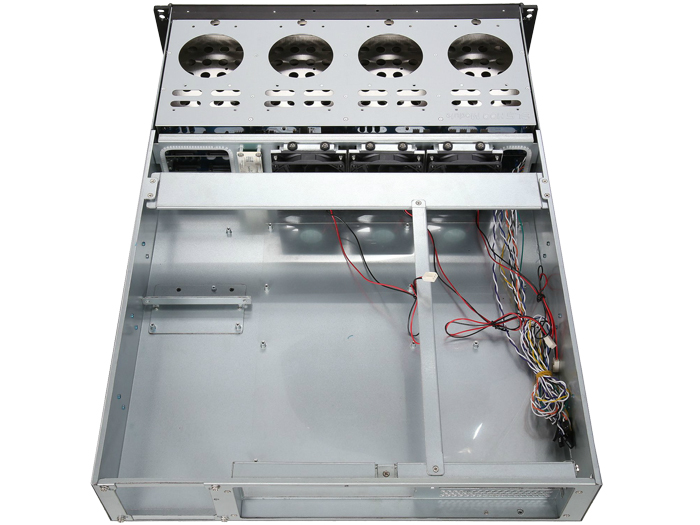

2U 12-Bay 12Gbps Mini-SAS E-ATX Rackmount Sever/Storage Chassis
RM-2U2123HE12 - RM-2U2123HE12
| Model | RM-2U2123HE12 |
|---|---|
| Product Category | Rackmount Storage |
| Product Sub Category | 12Gb/s (mini-SAS HD) Rackmount Storage |
| Cage Color | Silver/Black |
| Specifications | 19" Rackmount standard |
| MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) E-ATX (12 in. x 13 in.) Mini-ITX (6.7 in. x 6.7 in.) |
| Drive Bay | 12 x External Hot-Swap 3.5" or 2.5" SSD/HHD (SAS/SATA Interface) |
| Switch |
Power On/Off Reset |
| Power Supply |
2U Micro Redundant 2U Single |
| Cooling Fan | 3 x 80mm @ Center |
| Ports | None |
| Indicators | Warning / HDD Access / Power / LAN 1 / LAN 2 |
| Material | T=1.2mm SGCC |
| Dimension | (D x W x H) 25 x 17-1/4 x 3-9/16 (inch) |
| Weight | 21.00lb |
| Warranty | 1 Year Manufacture Limited Warranty |
