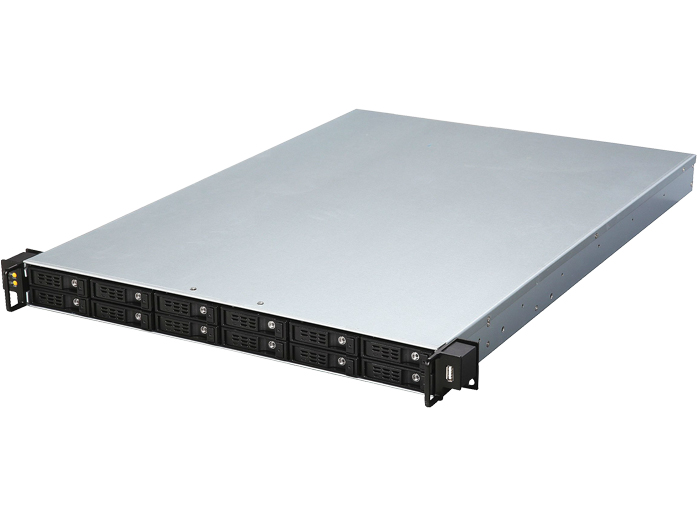

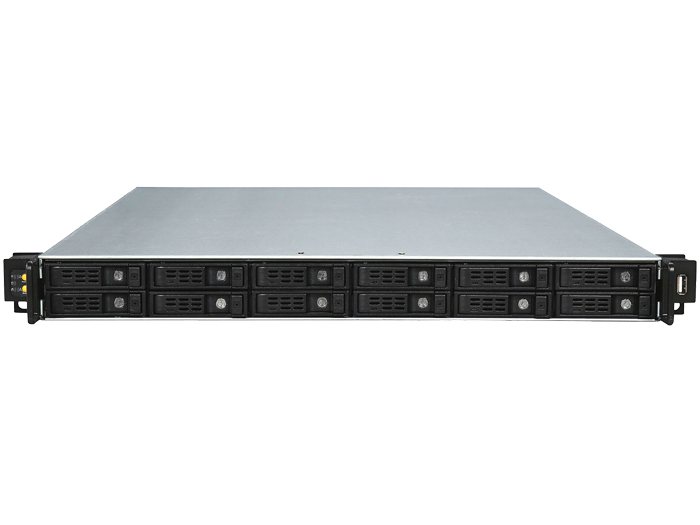

1U 12-Bay 12Gbps Mini-SAS E-ATX Rackmount Server/Storage Chassis

Athena Power RM-1U1122HE12 is a 1U rackmount server/storage chassis features a 12-Port 12Gb/s mini-SAS HD backplane which supports up to 12 SAS/SATA Internface 2.5" SSD/HDD(up to 15mm Height Enterprise Drive) hot-swappable. This server/storage rackmount chassis is compatible with a motherboard size up to E-ATX (12"x13").

Product Key Features:

• Motherboard Compatibility: Mini-ITX (6.7"x6.7"), MicroATX (9.6"x9.6"), ATX (12"x9.6") or E-ATX (12"x13") Form Factor;
• Feature a 12-Port 12Gb/s Backplane* and Support up to 12 SSD/HDD Hot-Swappable;

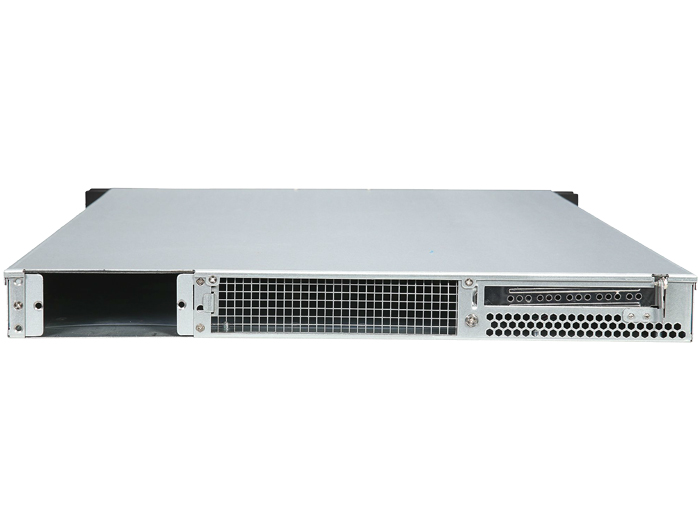

• PSU Compatibility: 1U Redundant, 1U Single or FlexATX Form Factor;
• Front Control Panel: 1 x USB2.0; Power On/HDD Activity/LAN1/LAN2/Warning LED Indicators;

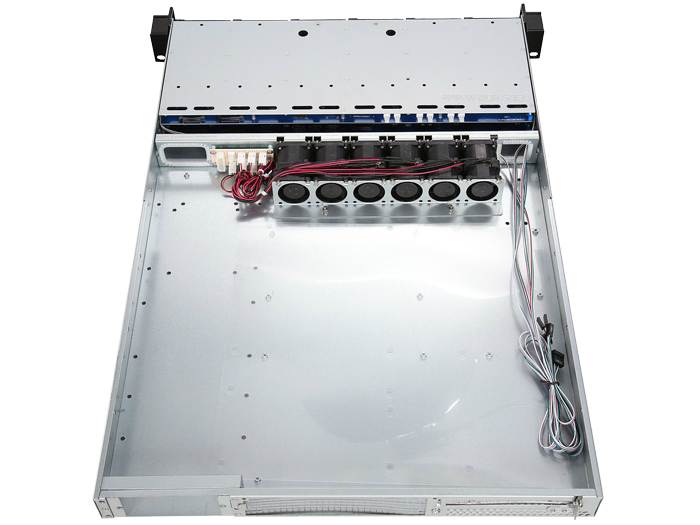

• 6 x 40mm High CFM Central Fans;

* 12Gb/s Backplane Key Features:

• Support up to 12 SAS (III, II, I) or SATA (III, II, I) Interface 2.5" SSD/HDD Hot-Swappable;
• 3 x Mini-SAS HD SFF-8643 (4-Port);
• 12 x Hot-Swappable 2.5" HDD Caddy**;
• Backplane was designed installed in horizontal position in order to have max airflow;

** 2.5" HDD Caddy Key Features:

• Compatible a 2.5" SSD/HDD (up to 15mm Height Enterprise Drive);
• Designed with Anti-vibration and EMI Grounding (up to 5kV) Spring Fingers;
• Front Bezel Ventilation Holes to Maximize Airflow;
• Metal Triangle Security Lock;
• LED Indicator Optical Lightpipe;
