RM-1U1043HE12 - RM-1U1043HE12
1U 4-Bay 12Gbps Mini-SAS E-ATX Rackmount Sever/Storage Chassis

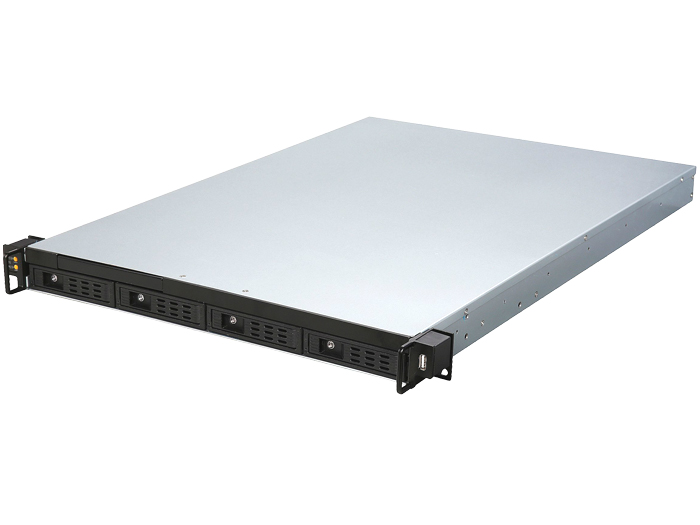

Athena Power RM-1U1043HE12 is a 1U rack mount server/storage chassis features a 12Gb/s mini-SAS backplane integrated 1 x mini-SAS HD SFF-8643 (4-Port) connector which supports up to 4 SAS(III,II,I)/SATA(III,II,I) Internface 3.5" or 2.5" SSD/HDD hot-swappable. This server/storage rackmount chassis is compitable with motherboard size from mini-ITX(6.7"x6.7") up to E-ATX(12"x13")
Product Key Features:
- Support a Standard ATX Form Factor Motherboard: Mini-ITX(6.7"x6.7"), MicroATX(9.6"x9.6"), ATX(12"x9.6") up to E-ATX(12"x13");
- Feature a 4-Port 12Gb/s backplane* supports up to 4 SSD/HDD hot-swappable;
- Support 1U Redundant, 1U Single or FlexATX power supply form factor;
- Feature 1 x External Slim ODD bay; 2 x Internal 2.5" HDD bay
- Feature 1 x USB2.0; Power On/HDD Activity/LAN1/LAN2/Warning LED Indicators;

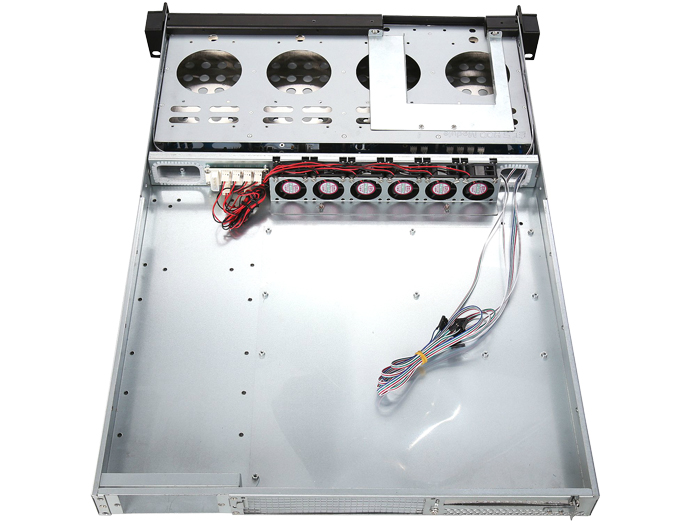

- Feature 6 x 40mm central fans;
*12Gb/s Backplane Key Features:
- Support up to 4 hot-swap SAS(III, II, I)/SATA(III, II, I) interface 3.5" or 2.5" SSD/HDD;
- Feature 1 x Mini-SAS HD SFF-8643 (4-Port);
- Feature 4 hot-swap 3.5"or 2.5" HDD caddy**;
- Backplane was designed installed in horizontal position in order to have max airflow;
**3.5" or 2.5" HDD Caddy Key Features
- Compatible with a 3.5" or 2.5" SSD/HDD;
- Feature anti-vibration and EMI grounding spring fingers;
- Feature 2-segment metal lock;
- Feature optical lightpipe LED indicator;
RM-1U1043HE12 - RM-1U1043HE12
| Model | RM-1U1043HE12 |
|---|---|
| Product Category | Rackmount Storage |
| Product Sub Category | 12Gb/s (mini-SAS HD) Rackmount Storage |
| Cage Color | Silver/Black |
| Specifications | 19" Rackmount standard |
| MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) E-ATX (12 in. x 13 in.) Mini-ITX (6.7 in. x 6.7 in.) |
| Drive Bay |
4 x External 3.5"/2.5" (w/ Hot-Swap Carriers) External Slim ODD x 1 (Optional: Internal 2.5" x 2) |
| Switch |
Power On/Off Reset |
| Power Supply |
FlexATX 1U Single 1U Redundant |
| Cooling Fan | 5 x 40mm @ Center |
| Ports | 1 x USB2.0A @ Front Handle |
| Indicators | Power / HDD / Warning / LAN1 / LAN2 |
| Material | T=1.2mm SGCC |
| Dimension | (WxHxD) 18x1.75x25(in) / 455x44.5x643(mm) |
| Weight | 17.00lb |
| Warranty | 1 Year Manufacture Limited Warranty |
RM-1U1043HE12 - RM-1U1043HE12
RM-1U1043HE12 - RM-1U1043HE12
| 20" Internal Mini-SAS HD Cable (SFF-8643 to SFF-8643) | Athena Power CABLE-MS8643INT20 is a 20" long internal mini-SAS HD 12Gb/s cable used for connecting a 12Gb/s host bus controller (SFF-8643) to a 12Gb/s mini-SAS HD (SFF-8643) internal backplane/... |
| 20" Internal Mini-SAS HD Reverse Breakout Cable (1x SFF-8643 to 4x SATA) | Athena Power CABLE-MS86434SRB20 is a 20" long internal mini-SAS HD to SATA Reverse Breakout cable used for connecting a host-controller or M/B with 4 SATA 7Pin connectors to a 12Gb/s mini-... |
