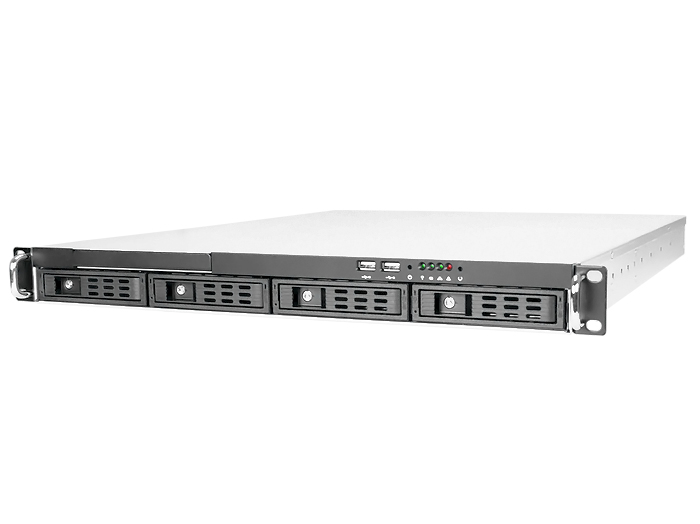

Built-in 4-port 6Gb/s Mini-SAS Backplane
RM-1U1043HA is featured a 4-port 6Gb/s mini-SAS backplane which supports four SATA-III / SAS-II 3.5” hot-swappable hard drives. Furthermore, the backplane on RM-1U1043HA has 3 different types of LED indication which provide each HDD real time status, such as Power On when HDD in, HDD Access, and HDD Overheating. Also, each of HDD on the RM-1U1043HA backplane is secured in an aluminum frame caddy with anti-vibration and triangle metal key-lock features.
Support Motherboard up to ATX Form Factor (12" x 10")
RM-1U1043HA supports the majority of mainstream motherboard form factors, from mini-ITX (6.7" x 6.7"), Micro ATX (9.6" x 9.6"), to ATX (12" x 10").
Compatible with Athena Power 1U Single and Flex ATX IPC Power Supply
Athena Power 1U single and Flex ATX form factors power supply unit from 400W and higher are compatible with RM-1U1043HA.

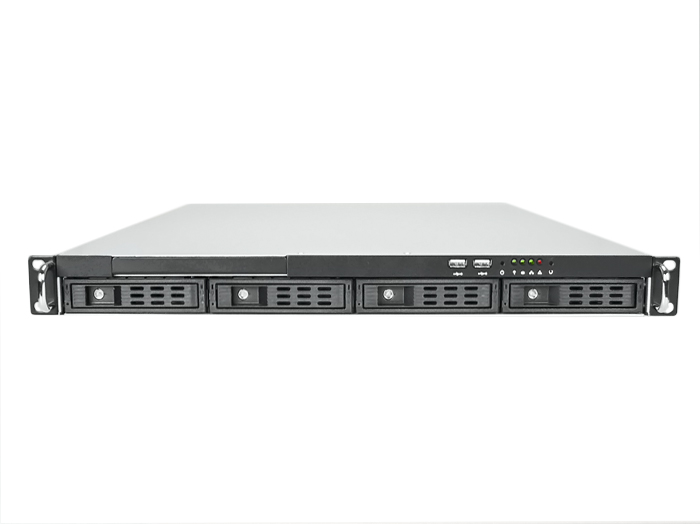

Drive Bay Expandability and Convenient Front Control Panel
RM-1U1043HA features a 2.5” HDD internal drive bay bracket that supports up to 2 x 2.5” HDD and 1 x slim ODD external drive bay. The front control panel of RM-1U1043HA shows the system status with 4 LED indicators (Power On / HDD Access / LAN / System Fail). 2 x USB 2.0 ports and control system with Power On / System Reset buttons.

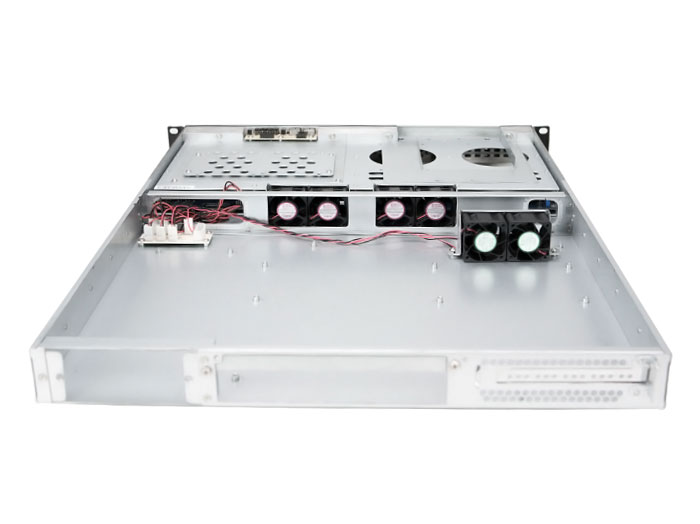

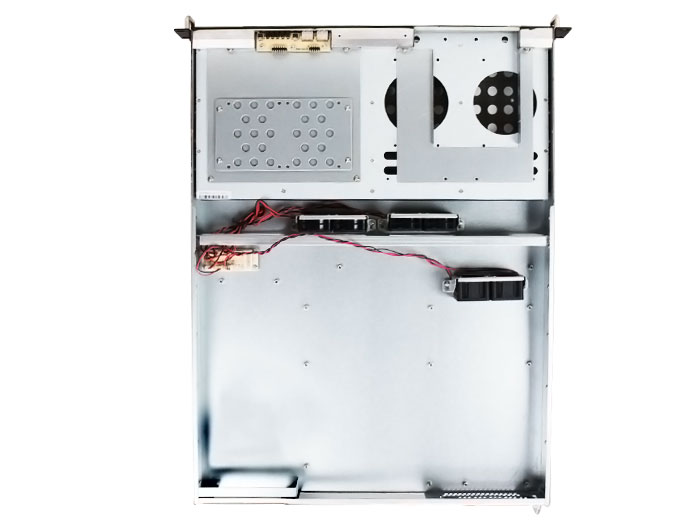

5 x 40mm High CFM Cooling Fans
5 x 40mm high CFM cooling fans are built-in in the center of chassis for efficient ventilation and system cooling purposes.

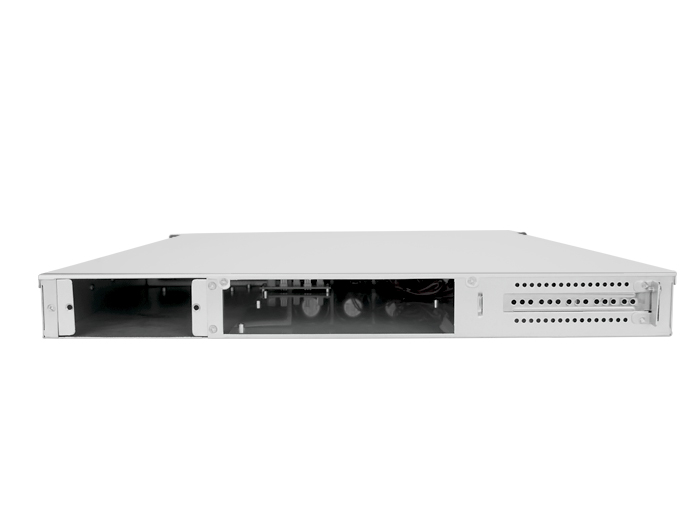

Full-height Expansion Slot
One full-height horizontal expansion slot for an add-in card, such as a RAID controller. (Riser card required)
RM-1U1043HA - RM-1U1043HA
Model | RM-1U1043HA |
---|---|
Product Category | Rackmount Storage |
Product Sub Category | 1U Rackmount Storage |
Cage Color | Silver/Black |
Specifications | 19" Rackmount standard |
MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) Mini-ITX (6.7 in. x 6.7 in.) |
Drive Bay |
External 3.5"(or 2.5") HDD x 4 (w/ hot-swap carriers) Internal 2.5" HDD x 2 (Optional) External Slim ODD x 1 |
Switch |
Power On/Off Reset |
Power Supply |
1U Single Flex ATX Single |
Cooling Fan | 5 x 40mm @ Center |
Ports | 2-Port USB2.0A @ Front |
Indicators | Power / HDD / LAN / FAIL |
Material | T=1.0mm SGCC |
Dimension | (WxHxD) 18x1.75x22(in) / 455x44.5x559(mm) |
Weight | 15.00lb |
Warranty | 1 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 22.44" x 27.13" x 7.32" (W x L x H) |
---|
RM-1U1043HA - RM-1U1043HA
RM-1U1043HA - RM-1U1043HA
Components |
---|
AP-U1ATX40P8 (Power Supply | 1U / 2U) |
RM-1U1043HA - RM-1U1043HA
RM-TRAY1043HA | |
20" Internal Mini-SAS Cable (SFF-8087 to SFF-8087) | Athena Power CABLE-MS8087INT20 is a 20" long internal mini-SAS 6Gb/s cable used for connecting a 6Gb/s host bus controller (SFF-8087) to a 6Gb/s mini-SAS (SFF-8087) internal backplane/expander.... |
20" Internal Mini-SAS Reverse Breakout Cable (1x SFF-8087 to 4x SATA) | Athena Power CABLE-MS8724SRB20 is a 20" long internal mini-SAS to SATA Reverse Breakout cable used for connecting a host-controller or M/B with 4 SATA 7Pin connectors to a 6Gb/s mini-SAS... |
