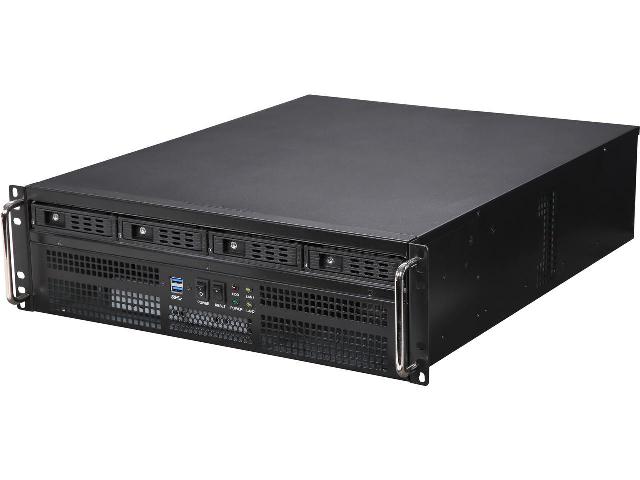

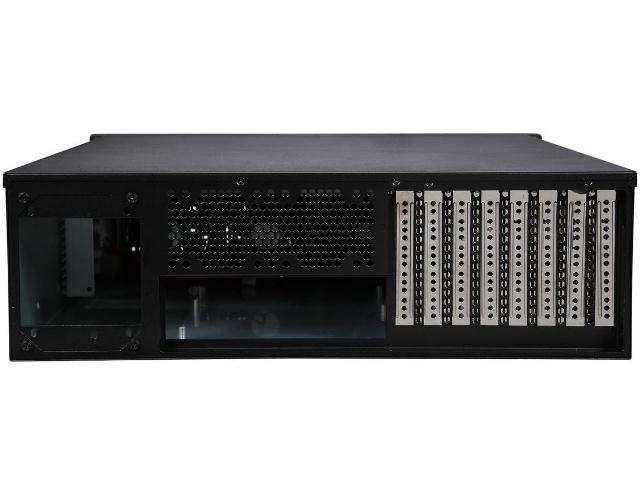

Athena Power RM-3U8G1043 GPU Server 12Gb/s 4-Port Mini-SAS Rackmount Storage Chassis is specially designed for GPU Server applications; features 8 full-height PCI expansion slots and the add-in card length could be up to 13". This chassis is a 3U form factor IPC enclosure and compitable with the standard 19-inch rack. Furthermore, it features an IPC grade 12Gb/s 4-Port mini-SAS HD (1 x Internal SFF-8643) backplane module.
RM-3U8G1043 - RM-3U8G1043
| Model | RM-3U8G1043 |
|---|---|
| Product Category | GPU Server & Storage Rackmount Chassis |
| Product Sub Category | 3U |
| Cage Color | Black |
| Specifications | 19" Rackmount standard |
| MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) E-ATX (12 in. x 13 in.) Mini-ITX (6.7 in. x 6.7 in.) |
| Drive Bay |
External: 4 x Hot-Swap 3.5"/2.5"HDD 12Gb/s mini-SAS Backplane Module (IPC Grade) Internal: 1 x 3.5"/2.5"HDD Drive Bay (at Chassis Front) |
| Switch |
Power On/Off Reset |
| Power Supply |
Athena Power 2U Micro Redundant (550W~800W) Athena Power 3U Single IPC (600W~800W) Athena Power 2U Single IPC (350W~800W) |
| Cooling Fan | 4 x 80mm DC Cooling Fans |
| Ports | 1 x External 2-Port USB3.0 Type-A |
| Indicators | POWER / HDD / LAN1 / LAN2 |
| Material | SECC (T=1.2mm) |

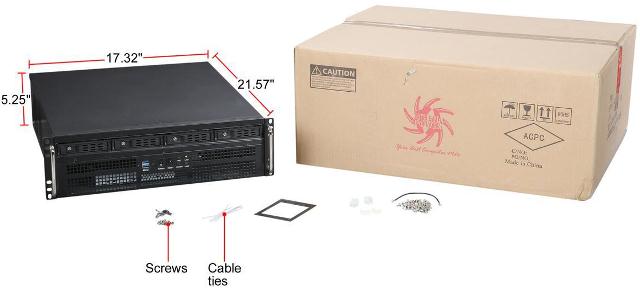

| Dimension | L 21-9/16" x W 17-5/16" x H 5-1/4" |
| Warranty | 1 Year Manufacture Limited Warranty |
