All customers please be advised that this rackmount is not the standard 2U rackmount and the height is 0.25" over the standard 3.5" for this rackmount. For additional assistance please feel free to contact an Athena Power service representative at service@athenapower.us or calling us at (626) 810-5008. Thank you.
RM-2U2260SV - RM-2U2260SV

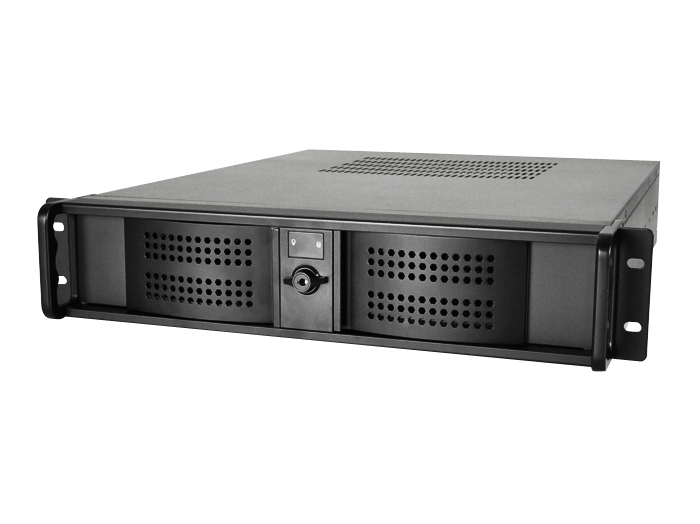

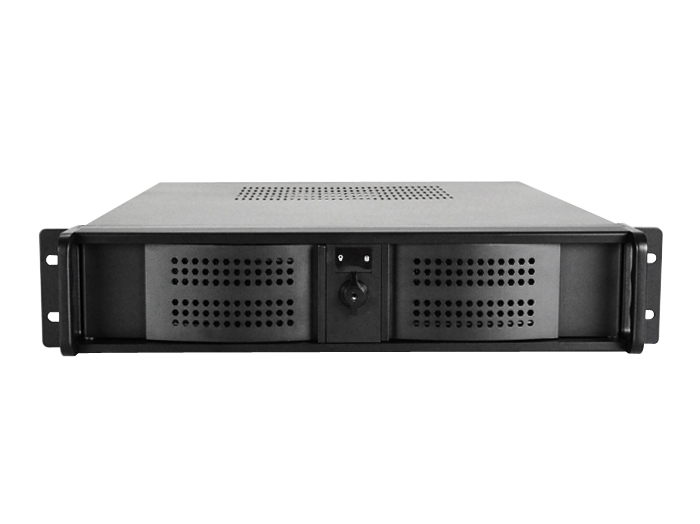

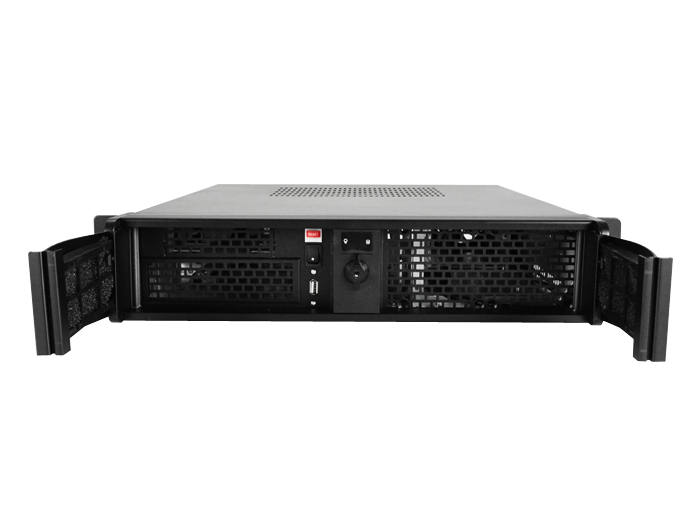

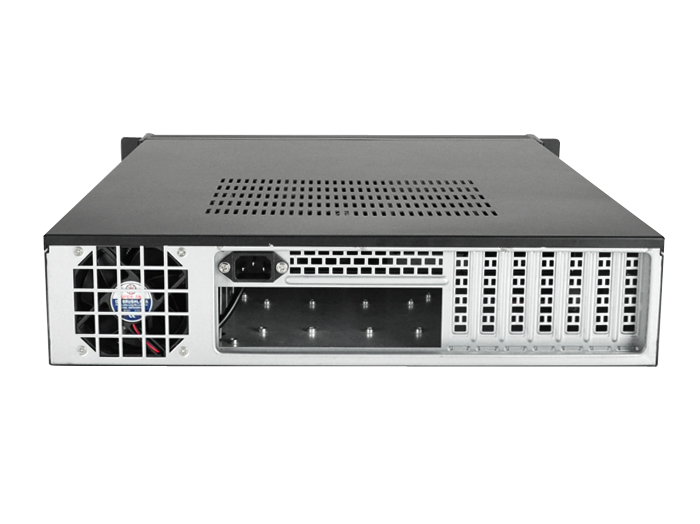

Athena Computer Power Corp introduces the new 2260SV, front power (PS2 size) design 2U rackmount chassis. The 2260SV series is an innovative 21" chassis with front USB, one 5.25” open bay, and one 3.50” open bay. It also has a lockable front door, which enables a secure networking environment. The three 80 mm ball bearing cooling fans, two in the center and one in the back, helps cool down the systems’ temperature while running at an optimal level.

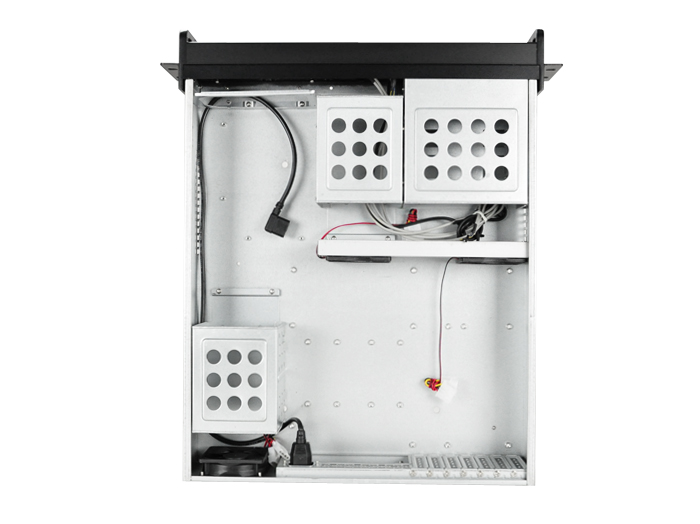

The rackmount case also contains six 3.50” hidden bays, allowing for several HDD mounts. With seven low profile PCI slots, the case gives ample room for specialized expansion cards and USB devices. The chassis has two removable and washable air filters that help block out dust from entering the internal systems.
There is also an optional Hot-Swap storage and Raid configuration that can be enabled. With a total storage capacity of up to 1 terabyte, this chassis provides the maximum flexibility and performance for servers or clusters.
RM-2U2260SV - RM-2U2260SV
Model | RM-2U2260SV |
---|---|
Product Category | Discontinued Rackmount |
Form Factor | 2U |
Cage Color | Black |
MotherBoard Size |
MicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) |
Drive Bay | 5.25" x 1 (open), 3.5" x 1 (open), 3.5" x 6 (hidden) |
External Bay |
5.25" x1 (External) 3.5" x1 (External) |
Internal Bay | 3.5" x6 (Internal) |
Switch | Power On/Off |
Power Supply | PS2 Power 400W~950W (optional) |
Cooling Fan | 2 x 80mm Center Fans, 1 x 80mm Rear Fan |
Ports | 1 x USB (Front) |
Indicators | Power, HDD LAN |
Expansion Slot | 7 Slot Low Profile |
Material | 1.2mm Steel |
Dimension | 19" x 3.75" x 21" ( W x H x D ) |
Weight | 17.00lb |
Warranty | 1 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 22.75" x 26" x 7.75" (W x L x H) |
---|---|
Master Box Weight | 25.00 lbs |
Package Quantity | 1 /Box |
