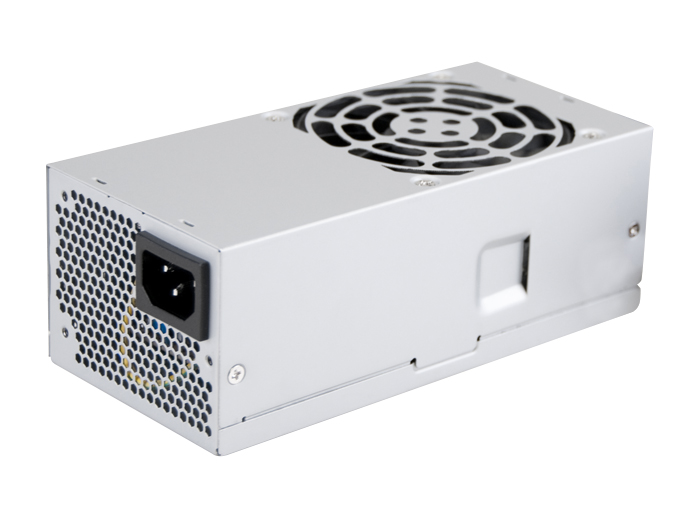

Introducing Athena Power’s 250W FTFX (AP-FTFX25) Power Supply . Athena Power’s 250W FTFX form factor is in between Flex ATX and TFX. It is compatible with many major brand systems. Features Active PFC (Power Factor Correction) and Auto Switch. FTFX25 includes internal 80mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation.
-
Certification: FCC, UR, CB, CE, Rohs, 80 PLUS
AP-FTFX25 - AP-FTFX25
| Model | AP-FTFX25 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | TFX / FTFX | ||||||||||||||
| Product Sub Category | FTFX Power Supplies | ||||||||||||||
| Output Power | 250 Watts | ||||||||||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||||||||||
| Frequency | 60/50 Hz | ||||||||||||||
| Temperature Range | Operating 0° C ~ +25° C on 250W Output Load or 0° C ~ +50° C on 220W Output Load ; Storage & Shipping -20° C ~ +80° C | ||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less than 20 ms | ||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Connectors |
ATX Connector 24 (20+4) Pin P4-12V 4 Pin Molex 4 Pin SATA 15 Pin Floppy 4 Pin |
||||||||||||||
| Dimension | 3.23" x 2.44" x 5.9" | ||||||||||||||
| Weight | 2.50lb | ||||||||||||||
| Warranty | 1 Year Warranty |
