AP-P4ATX90FEP - AP-P4ATX90FEP
The Ultimate 900(AP-P4ATX90FEP) high performance AUTO switching power supply supports the latest motherboard connectors of 20, 24, 8, and 4 pins. Dual EPS-12V 8pin support Intel Skulltrail platform systems. It sets a new standard in server and industrial power supply. In addition, AP-P4ATX90FEP comes with 4 PCI-Express 6pin + 2pin connector (for Multi-GPU graphic card) to enable SLI, Cross-Fire application, and SATA power connectors for the latest storage interface. The Ultimate 900 is the ideal power supply for server and high-end gaming workstations. Dual Fans with smart temperature control cools down the power for better performance. This power supply supports Intel® Skulltrail and Core i7 platform systems.
Multiple Support Function
Supporting ATX V2.3, EPS-12V Xeon, and i7 motherboards it also includes 4x PCI-E 6-pin connectors for advanced graphics cards running in quad SLI or Crossfire configuration. This PSU can be used for mini-servers, server assemblies, rackmount servers, and desktops.

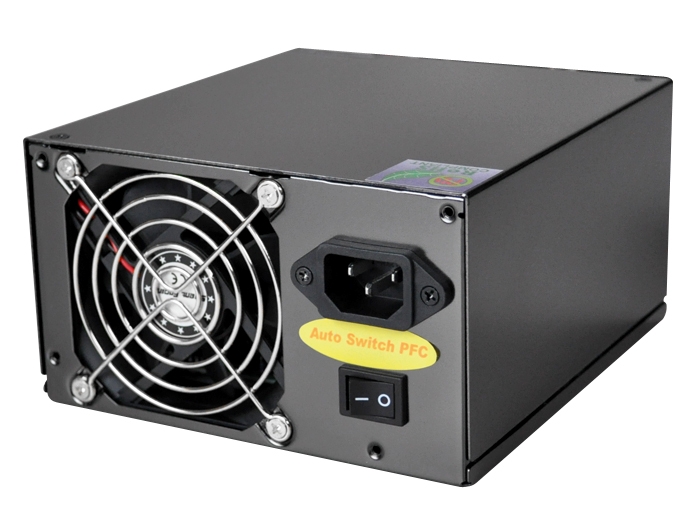

Active PFC, Full Range, and You.
The Active PFC and Full Range function provides a smarter PSU. Able to detect the differences of wattage that is needed to power up your system, you can be rest assured as it will provide and maintain the most suitable power needed.

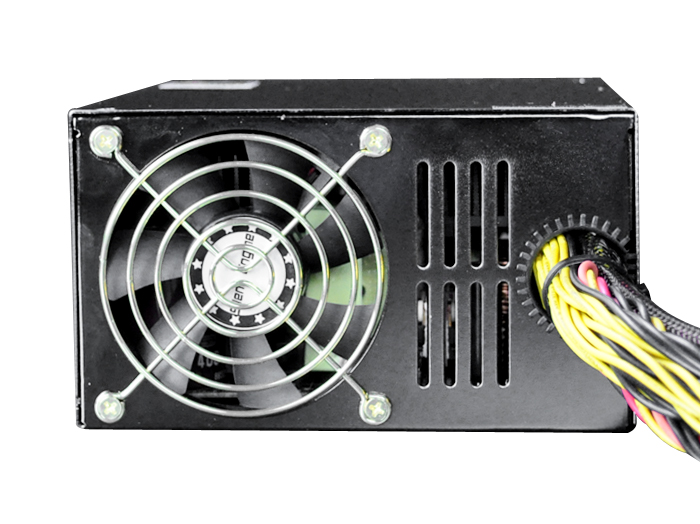

Dual Fan
With its dual fan features located at the front and back of the power supply the rear fan intakes the heat that is produced inside the server or system and pushes it through the front fan. This design allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system. While some other PSU fans work differently, this dual fan design is targeted to maintain a reliable source of power and keeping the system cool. Some may second guess this dual fan feature because it will increase noise volumes, but with its thermal fan speed control will detect the amount of heat generated by the computer and spin accordingly.
Smart Auto Fan Speed Controller
Thermal fan speed control will detect the amount of heat generated by the computer and spin accordingly. Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worrying about the heat levels, of a PSU, becomes almost non-existent.
Silence is Golden
Athena Computer Power’s designers have designed a low ripple and noise feature that is included within the PSU, taking customer’s needs into consideration for whatever they may be using this PS2 PSU for, the electrical ripple and noise has been significantly reduced for a more quiet system.
AP-P4ATX90FEP - AP-P4ATX90FEP
Model | AP-P4ATX90FEP | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Category | PS2 | ||||||||||||||||||||
Product Sub Category | PS2 Power Supplies | ||||||||||||||||||||
Output Power | 900 Watts | ||||||||||||||||||||
Input Votage | 88 ~ 264 Volts AC | ||||||||||||||||||||
Frequency | 60/50 Hz | ||||||||||||||||||||
MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||||||
Rise time | Less than 70 ms | ||||||||||||||||||||
Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||||||||
Output |
|
||||||||||||||||||||
Connectors |
ATX Connector 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS-12V 8 Pin x 1 EPS-12V 4+4 Pin x1 PCIE 6 6 (6+2) Pin x 2 PCIE 6 6 Pin x 2 SATA 15 Pin x 8 Molex 4 Pin x 4 Floppy 4 Pin x 1 |
||||||||||||||||||||
Dimension | (L x W x H) 158 x 146 x 82 mm/ 6.25 x 5.75 x 3.25 in | ||||||||||||||||||||
Weight | 6.00lb | ||||||||||||||||||||
Warranty | 3 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | (W x L x H) |
---|---|
UPC Code | 821524029083 |
