AP-P4ATX65FE - AP-P4ATX65FE
The SUPREME 600 Watt power supply is for new, OEM, PC, server assemblies, Mini Servers, and rackmount servers. It supports both 20-pin or 24-pin ATX v.2.2 and EPS-12V Xeon motherboards. It also includes two PCI Express 6-pin connectors, which can supply power to two advanced graphics cards running in SLI or Crossfire configurations. This power supply supports Intel® Core i7 platform systems
Multiple Support Function
Supporting ATX V2.2, EPS-12V Xeon, and i7 motherboards it also includes 4x PCI-E 6-pin connectors for advanced graphics cards running in quad SLI or Crossfire configuration. This PSU can be used for mini-servers, server assemblies, rackmount servers, and desktops.

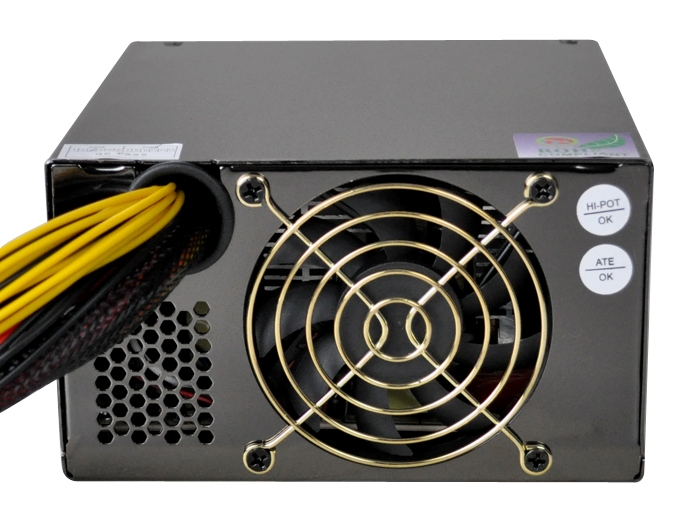

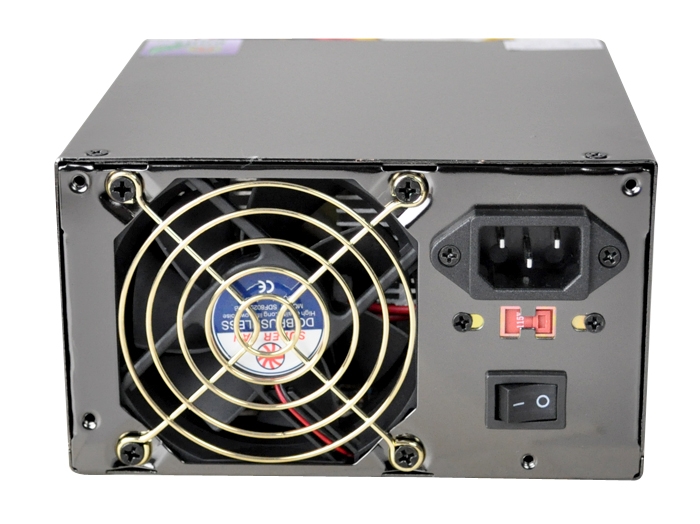

Dual Fan
With its dual fan features located at the front and back of the power supply, the rear fan intakes the heat that is produced inside the server or system and pushes it through the front fan. This design allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system. While some other PSU fans work differently, this dual fan design is targeted to maintain a reliable source of power and keeping the system cool. Some may second guess this dual fan feature because it will increase noise volumes, but with its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly.
Smart Auto Fan Speed Controller
Thermal fan speed control will detect the amount of heat generated by the computer. Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat level of a PSU becomes almost non-existent.
Silence is Golden
Athena Computer Power’s designers have designed a low ripple and noise feature that is included within the PSU, taking customer’s needs into consideration for whatever they may be using this PS2 PSU for, the electrical ripple and noise has been significantly reduced for a more quiet system.
AP-P4ATX65FE - AP-P4ATX65FE
Model | AP-P4ATX65FE | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Category | PS2 | ||||||||||||||
Product Sub Category | PS2 Power Supplies | ||||||||||||||
Output Power | 650 Watts | ||||||||||||||
Input Votage | 88 ~ 264 Volts AC | ||||||||||||||
Frequency | 47/63 Hz | ||||||||||||||
Temperature Range | Maximum Power Continuous 650W at 40 °C | ||||||||||||||
MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
Rise time | Less than 70 ms | ||||||||||||||
Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
Output |
|
||||||||||||||
Connectors |
ATX Connector 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS-12V 8 Pin x 2 PCIE 6 6 (6+2) Pin x 2 PCIE 6 6 Pin x 2 SATA 15 Pin x 4 Molex 4 Pin x 4 Floppy 4 Pin x 1 |
||||||||||||||
Dimension | (L x W x H) 158 x 146 x 82 mm/ 6.25 x 5.75 x 3.25 in | ||||||||||||||
Warranty | 3 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 11.5" x 19.675" x 7.125" (W x L x H) |
---|---|
Master Box Weight | 27.00 lbs |
Package Quantity | 6 /Box |
