AP-P4ATX50F - AP-P4ATX50F
Athena Computer Power is pleased to introduce their new mid-level power supply line, the SUPREME series. Starting at the 500 Wattage range this Power Supply is able to support ATX Motherboards V2.2 and is backwards compatible with older models. Understanding the need for a power supply that can power up various hardware components this series has added 2x PCI-E 6pin connectors which is able to power dual SLI or Crossfire configurations for GPU’s.
Multiple Support Function
The SUPREME 500 Watt power supply is for new OEM, PC, and server assemblies, including Mini Servers and rackmount servers. It supports both the 20-pin and 24-pin ATX v.2.2 motherboards and includes two PCI Express 6-pin connectors, which can supply power to two advanced graphics cards running in SLI or Crossfire configurations. This power supply supports Intel® Skulltrail and Core i7 platform systems.

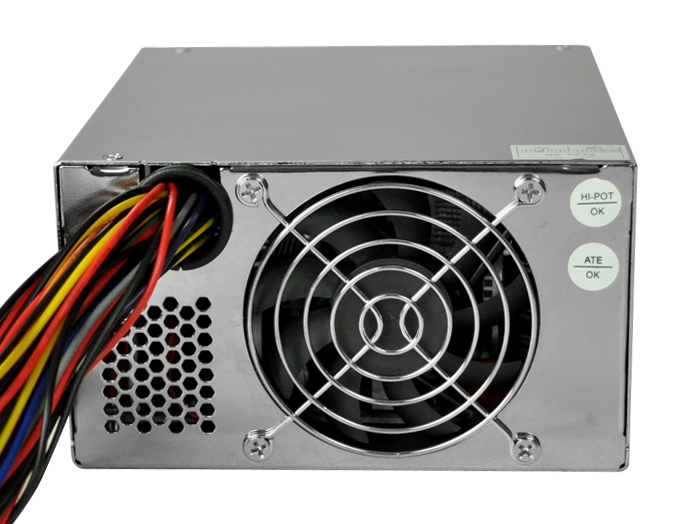

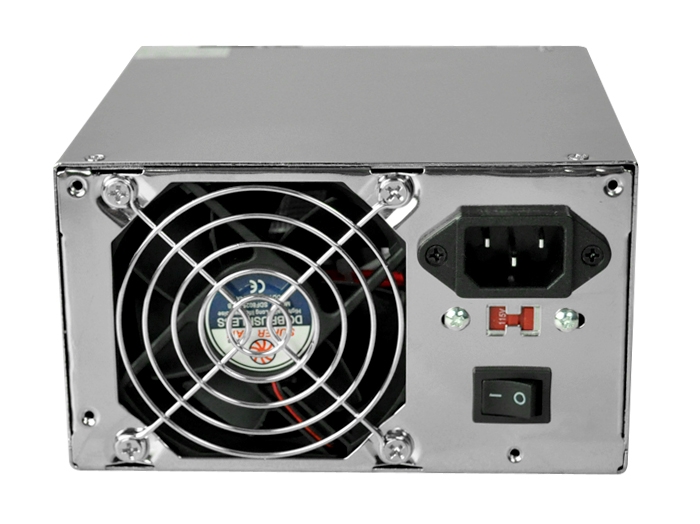

Dual Fan
With its dual fan features located at the front and back of the power supply the rear fan intakes the heat that is produced inside the server or system and pushes it through the front fan which is positioned towards the exit points of the server/system which keeps the motherboard and hard drives cool. This design allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system, while some other PSU fans work differently this dual fan design is targeted to maintain a reliable source of power and keeping the system cooled. Some may second guess this dual fan feature because it will increase noise volumes but with its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly.
Smart Auto Fan Speed Controller
With its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly. Using this controller to detect the heat levels of the PSU it will adjust the fan speed accordingly, with this feature built in, worrying about the heat level of a PSU becomes almost non-existent.
Silence is Golden
Athena Computer Power’s designers have designed a low ripple and noise feature that is included within the PSU, taking customer’s needs into consideration for whatever they may be using this PS2 PSU for, the electrical ripple and noise has been significantly reduced for a more quiet system.
AP-P4ATX50F - AP-P4ATX50F
Model | AP-P4ATX50F | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Category | PS2 | ||||||||||||||
Product Sub Category | PS2 Power Supplies | ||||||||||||||
Output Power | 500 Watts | ||||||||||||||
Input Votage | 115/230 Volts AC | ||||||||||||||
Frequency | 60/50 Hz | ||||||||||||||
MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
Rise time | Less than 70 ms | ||||||||||||||
Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
Output |
|
||||||||||||||
Connectors |
ATX Connector 24 (20+4) Pin P4-12V 4 Pin PCIE 6 6 (6+2) Pin SATA 15 Pin Molex 4 Pin Floppy 4 Pin |
||||||||||||||

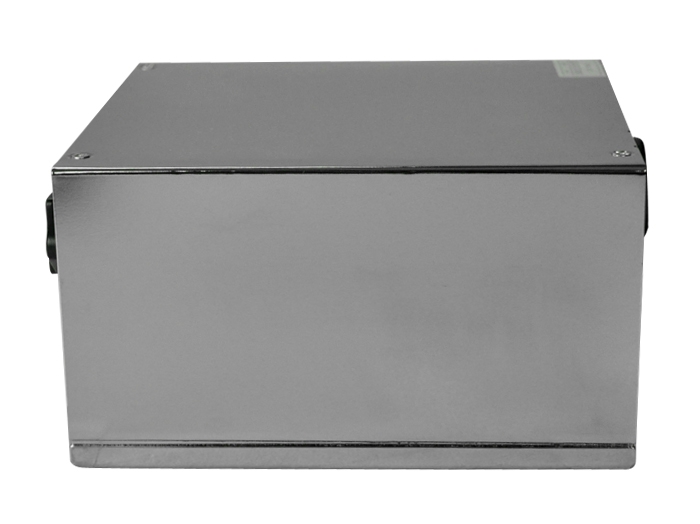

Dimension | 5.75" x 3.25" x 6.25" | ||||||||||||||
Warranty | 1 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 16.5" x 21" x 7" (W x L x H) |
---|---|
Master Box Weight | 27.00 lbs |
UPC Code | 821524015048 |
Package Quantity | 8 /Box |
