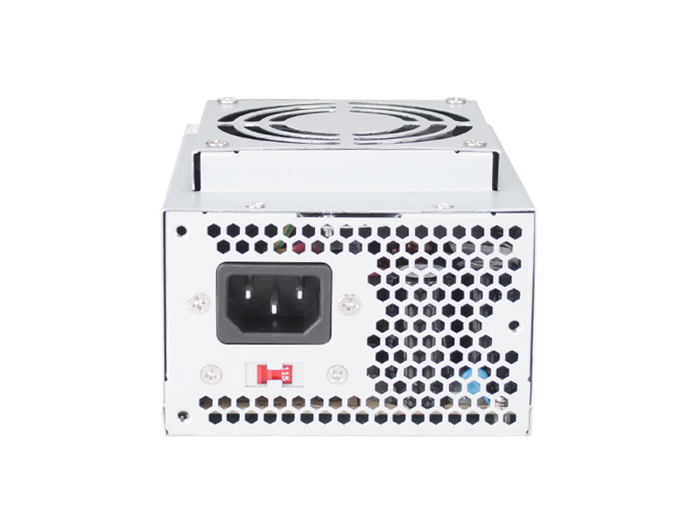

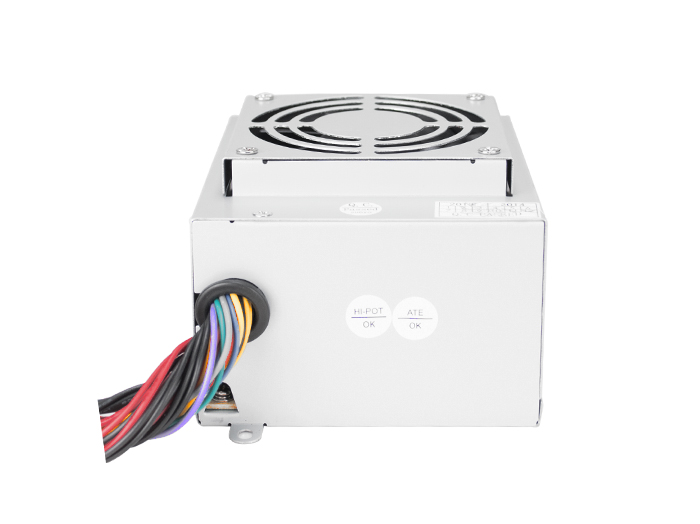

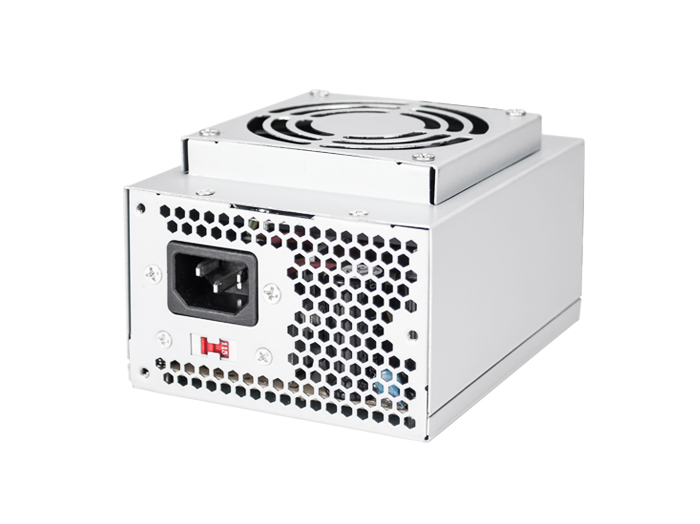

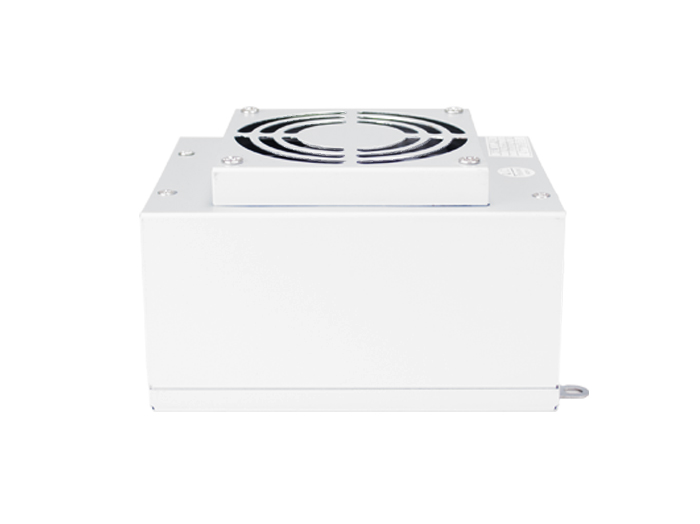

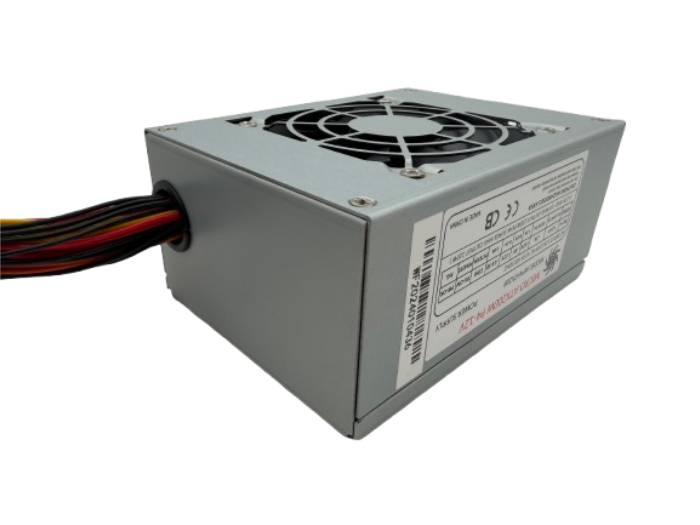

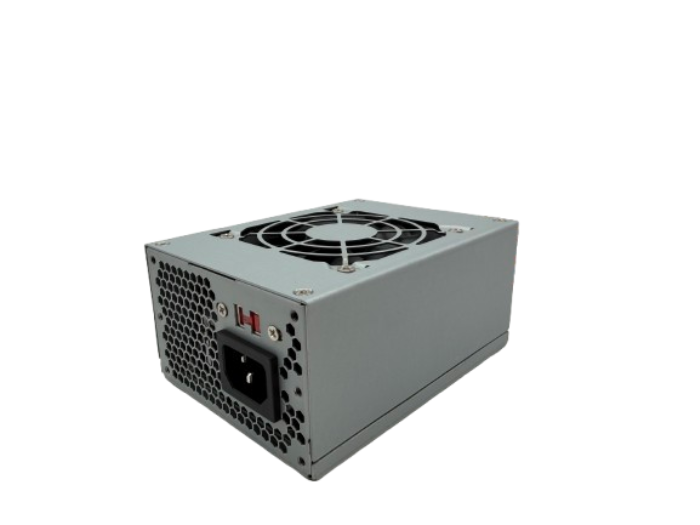

AP-MP4ATX20/B - AP-MP4ATX20/B
Athena Computer Power is proud to introduce the first of its Micro SFX Power Supplies, the APOLLO 200 Watt PSU. With its compact design and compatibility with most E-machine units, this replacement or micro platform PSU is focused on providing a silent and efficient PSU.
The Micro SFX Design
Micro SFX power supplies are known mostly as a replacement power supply, but it has now evolved and can be used for mini-ATX cases, custom built computers, mini-servers, and more. With the increase of wattage and efficiency, the micro SFX is a conventional PSU that can be used for multiple purposes.
Designed for custom built PCs, mini-servers, and HTPCs.
The APOLLO 200 Watt power supply will support the most current ATX motherboards V2.2 and lower. Its PCI-E 6-pin connector supports an additional VGA card. This PSU is ideal for custom-built PCs, mini-servers, and HTPCs.
Smart Auto Fan Speed Controller
Thermal fan speed control it will detect the amount of heat generated by the computer. Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat levels, of a PSU, becomes almost non-existent.
AP-MP4ATX20/B - AP-MP4ATX20/B
Model | AP-MP4ATX20/B | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Category | Micro SFX | ||||||||||||||||
Product Sub Category | Apollo Series | ||||||||||||||||
Output Power | 200 Watts | ||||||||||||||||
Input Votage | 115/230 Volts AC | ||||||||||||||||
Frequency | 60/50 Hz | ||||||||||||||||
Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||||
MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||
Rise time | Less than 20 ms | ||||||||||||||||
Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||||
Output |
|
||||||||||||||||
Connectors |
ATX Connector 24 (20+4) Pin x1 P4-12V 4 Pin x 1 Molex 4 Pin x 4 Floppy 4 Pin x 1 HP Video 4 Pin x 1 |
||||||||||||||||
Dimension | (L x W x H) 128 x 100 x 76.4 mm / 5 x 3.93 x 3.0 in | ||||||||||||||||
Weight | 2.00lb | ||||||||||||||||
Warranty | 1 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 14.75" x 17.25" x 6.75" (W x L x H) |
---|---|
Master Box Weight | 22.00 lbs |
UPC Code | 821524012078 |
Package Quantity | 10 /Box |
