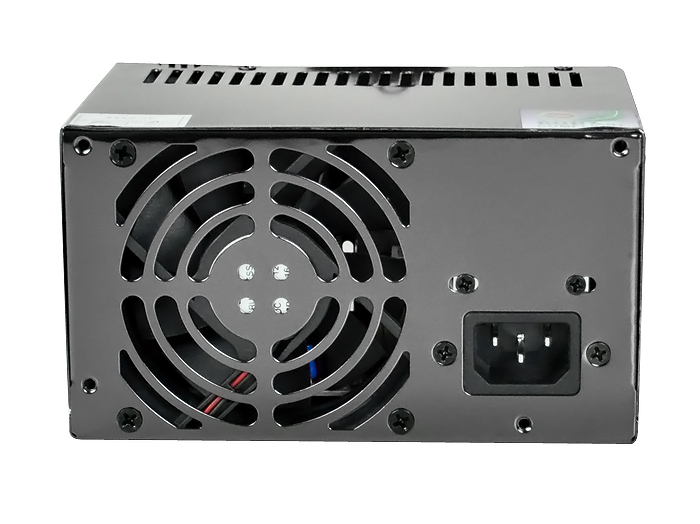

The HERCULES series has ramped up its wattage while maintaining high efficiency. With a higher demand for a stronger and reliable PSU, Athena Computer Power has released the HERCULES 800 Watt Power Supply. The latest power supply in the HERCULES series, follows the same blueprints that made its predecessors so popular. Integrated with Active PFC and alongside its 80PLUS bronze badge certification, this compact power supply brings micro PS3 PSUs into the next level.
The Micro PS3 Design
Micro PS3 power supplies are known mostly as a replacement power supply, but it has now evolved and can be used for Micro-ATX cases, custom built computers, mini-servers, and more. With the increase of wattage and efficiency, the micro PS3 is a conventional PSU that can be used for multiple purposes.
Designed for custom built PCs, mini-servers, and HTPCs.
The HERCULES 800 Watt will support the most current ATX motherboards, including the latest EPS-12V Xeon and Intel Core I7 motherboards. Its dual PCI-E 8-pin connectors support high-end SLI and ATI graphic cards. It is ideal for custom-built PCs, mini-servers, and HTPCs.
Active PFC and Full Range Input
The Active PFC and Full Range function provides a smarter PSU. Able to detect the differences of wattage that is needed to power up your system, you can be rest assured as it will provide and maintain the most suitable power needed.
AP-MPS3ATX80EP8 - AP-MPS3ATX80EP8
| Model | AP-MPS3ATX80EP8 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | Micro PS3 | ||||||||||||||||
| Product Sub Category | Hercules Series | ||||||||||||||||
| Output Power | 800 Watts | ||||||||||||||||
| Input Votage | 88 ~ 264 Volts AC | ||||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||
| Rise time | Less than 20 ms | ||||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||||
| Output |
|
||||||||||||||||

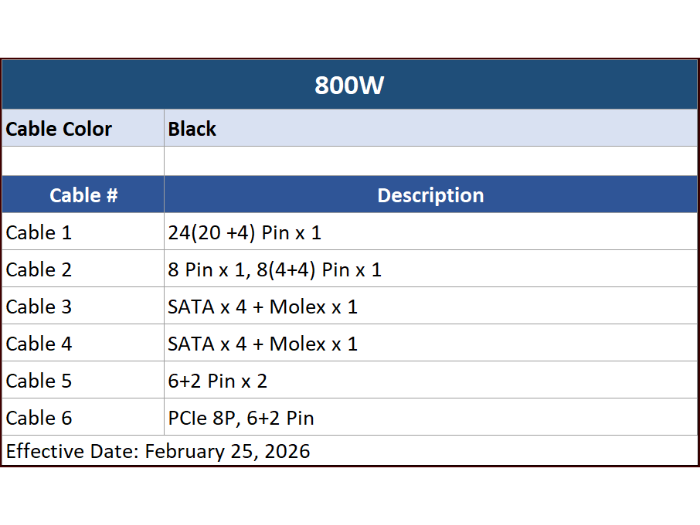

| Connectors |
ATX 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS-12V 8 Pin x 2 PCIE 6 Pin x 2 PCIE 6+2 Pin x 2 SATA 15 Pin x 8 Molex 4 Pin x 2 Floppy 4 Pin x 1 |
||||||||||||||||
| Dimension | (L x W x H) 118 x 150 x 83.75 mm / 4.65 x 5.9 x 3.3 in | ||||||||||||||||
| Weight | 6.50lb | ||||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
