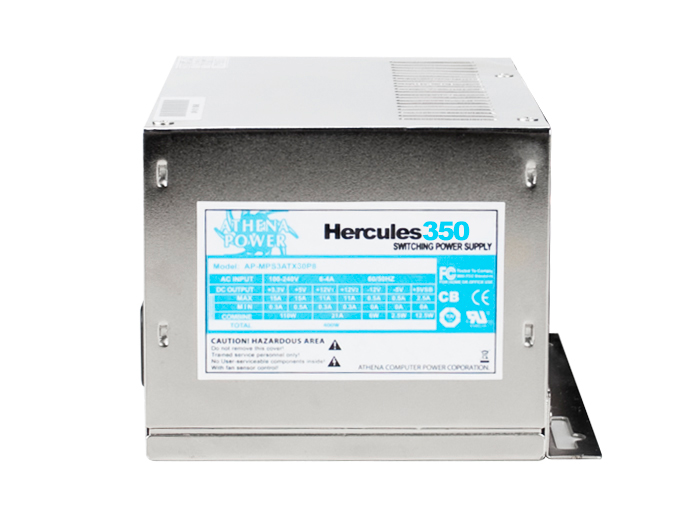

The HERCULES series has improved on power. Upgrading its overall power to 350Watts this Micro PS3 PSU can be used with many Dell, HP, IBM, Compaq, and Gateway PCs for either power supply replacement or new system assembly. Supporting up to ATX V2.2 motherboards and below and with smart silent technology, the HERCULES 350W truly has surpassed its predecessors.
The Micro PS3 Design
Micro PS3 power supplies are known mostly as a replacement power supply, but it has now evolved and can be used for micro-ATX cases, custom built computers, mini-servers, and more. With the increase of wattage and efficiency, the micro PS3 is a conventional PSU that can be used for multiple purposes.
Designed for custom built PCs, mini-servers, and HTPCs.
The HERCULES 350 Watt power supply will support the most current ATX motherboards V2.2 and lower. Its PCI-E 6-pin connector supports an additional VGA card. This PSU is ideal for custom-built PCs, mini-servers, and HTPCs.
Active PFC and Full Range Input
The Active PFC (Power Factor Correction) and Full Range Input function promotes a smarter PSU. Able to detect the differences of wattage that is needed to power up your system, you can be rest assured as it will provide and maintain the most suitable power needed.
80PLUS Certification
Saving energy has become an important factor when choosing the correct power supply and what shows more efficiency than having an 80PLUS Certification. The HERCULES 350W is one of the latest Micro PS3 PSU’s that brandishes this certification. Providing efficiency during max and low loads this PSU lives up to the standards of today’s world.
Smart Auto Fan Speed Controller
Thermal fan speed control will detect the amount of heat generated by the computer. Using this controller to detect the heat levels, it will adjust the fan speed accordinglyand the need to worry about the heat levesl, of a PSU, becomes almost non-existent.
AP-MPS3ATX35P8 - AP-MPS3ATX35P8
Model | AP-MPS3ATX35P8 | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Category | Micro PS3 | ||||||||||||||||
Product Sub Category | Hercules Series | ||||||||||||||||
Output Power | 350 Watts | ||||||||||||||||
Input Votage | 88 ~ 264 Volts AC | ||||||||||||||||
Frequency | 47/63 Hz | ||||||||||||||||
Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||||
MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||
Rise time | Less than 20 ms | ||||||||||||||||
Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||||
Output |
|
||||||||||||||||
Connectors |
ATX Connector 24(20+4) pin x 1 EPS 12V 8 pin EPS 12V 8 pin (P4 x 2) x 1 PCIE 6+2 pin x 2 SATA 15 pin x 3 Molex 4 pin x 2 Floppy 4 pin x 1 |
||||||||||||||||
Dimension | (L x W x H) 100 x 150 x 83.75 mm/ 3.93 x 5.90 x 3.29 in | ||||||||||||||||
Weight | 4.00lb | ||||||||||||||||
Warranty | 3 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | 18" x 20.25" x 7" (W x L x H) |
---|---|
Master Box Weight | 31.00 lbs |
Package Quantity | 10 /Box |
