Introducing the Athena Power AP-MFATX80P868, a high-efficiency 800W power supply unit designed specifically for Small Form Factor (SFF) systems such as mini-ITX, 1U IPC servers, and high-performance systems. This PSU is certified to the latest UL/TUV 62368-1 compliance, ensuring top-notch safety and reliability for industrial-grade applications.
Key Features:
1. High Efficiency:
The AP-MFATX80P868 meets the 80PLUS Platinum standard, providing exceptional efficiency during both maximum and low loads, making it an energy-saving solution for your system.
2. Advanced Power Management:
Equipped with Active PFC (Power Factor Correction) circuits and Full Range AC Input, this PSU meets EN61000-3-2 standards, ensuring stable and efficient power delivery.
3. Safety and Compliance:
Certified to IEC/UL/CSA/EN 62368-1 safety standards, the AP-MFATX80P868 meets the latest regulatory requirements in the United States, Canada. Additionally, it complies with EMI regulations: 47 CFR FCC part 15, subpart B, ANSI C63.4:2014.
4. Robust Testing:
This power supply unit undergoes 100% Hi-Pot, ATE, and Burn-in testing to ensure high reliability and performance in demanding environments.
5. Thermal Management:
Features an exhaust 12V DC fan with a thermal fan speed controller, ensuring efficient heat dissipation and maintaining optimal operating temperatures.
6. Protection Features:
Includes output over-voltage, short circuit, and overload protection, safeguarding your system from potential damage.
7. Versatile Compatibility:
Complies with FLEX ATX-12V and EPS-12V standards, making it SLI & CrossFire ready, and ensuring compatibility with a wide range of systems.
8. Remote On/Off Function:
The remote On/Off function provides convenient power management for your system, enhancing overall control and efficiency.
9. 80PLUS Platinum Certified:
The AP-MFATX80P868 meets the 80PLUS Platinum standard, providing exceptional energy efficiency during both maximum and low loads. This not only saves energy but also reduces operational costs, making it an ideal choice for today's energy-conscious world.
AP-MFATX80P868 - AP-MFATX80P868
![](/sites/athenapower.com/themes/images/title-bottom.png)
Model | AP-MFATX80P868 | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Product Category | Flex ATX | ||||||||||||||
Product Sub Category | Flex ATX 62368 | ||||||||||||||
Output Power | 800 Watts | ||||||||||||||
Input Votage | 90 ~ 264 Volts AC | ||||||||||||||
Frequency | 47 ~ 63 Hz | ||||||||||||||
Temperature Range | Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C | ||||||||||||||
MTBF | 250,000 Hours on Maximum Load at +25°C | ||||||||||||||
Rise time | Less than 70 ms | ||||||||||||||
Hold-up Time | 11 ms Minimum at Nominal Input Voltage | ||||||||||||||
Output |
|
||||||||||||||
Connectors |

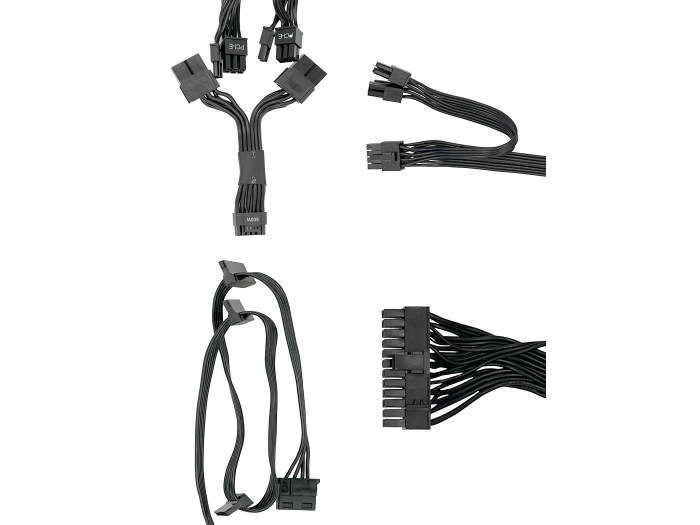

ATX Connector 24(20+4) Pin x 1 EPS-12V 8 Pin x 1, 8(4+4) Pin x 1 PCIE 6+2 Pin x 3, 8 Pin x 1 SATA 15 Pin x 3 Molex 4 Pin x 1 Converter P5 16(12+4) Pin for PCIe 5.0 |
||||||||||||||
Dimension | (L x W x H) 150 x 81.5 x 40.5 mm / 6 x 3.2 x 1.59 in | ||||||||||||||
Weight | 4.25lb | ||||||||||||||
Warranty | 3 Year Manufacture Limited Warranty |
Manufacture package information:
Master Box Dimension | (W x L x H) 6 x 10 x 2 in. (W x L x H) |
---|---|
Master Box Weight | 4.75 lbs |
UPC Code | 821524017097 |
Package Quantity | 1 /Box |
