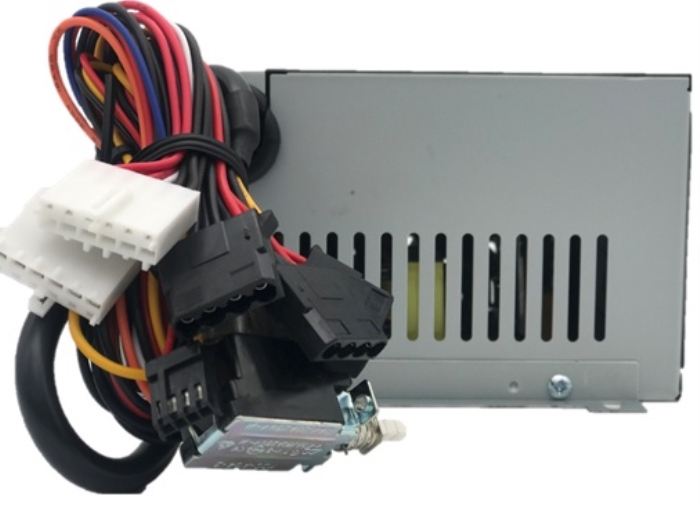

Introduced in 1988, the AT Power Supply has been a dependable solution for over two decades and remains widely used in today’s industry. Athena Computer Power has enhanced this proven design by boosting the wattage to 300W, delivering increased power while maintaining the reliability and control required in demanding environments.
The 300 Watt AT power supply is an excellent choice for a wide range of industrial machines. It offers a stable and consistent power source, ensuring reliable operation across various applications. Unlike newer ATX models, the AT Power Supply operates with a manual power switch—an important feature for applications that require controlled startup and shutdown processes.
This unit is also compatible with many legacy systems, including accounting platforms, automatic control machines, and storage PCs, making it a reliable replacement option for older setups.
AP-AT30 - AP-AT30
| Model | AP-AT30 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | AT | ||||||||||
| Product Sub Category | AT Power Supplies | ||||||||||
| Output Power | 300 Watts | ||||||||||
| Input Votage | 115/230 Volts AC | ||||||||||
| Frequency | 60/50 Hz | ||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||
| Output |
|
||||||||||
| Connectors |
AT P8/P9 6+6pin x 1 AT Push Button 4pin x 1 Molex 4 Pin x 4 Floppy 4 Pin x 2 |
||||||||||
| Dimension | 5.75" x 3.25" x 5.5" | ||||||||||
| Warranty | 1 Year Manufacture Limited Warranty |
