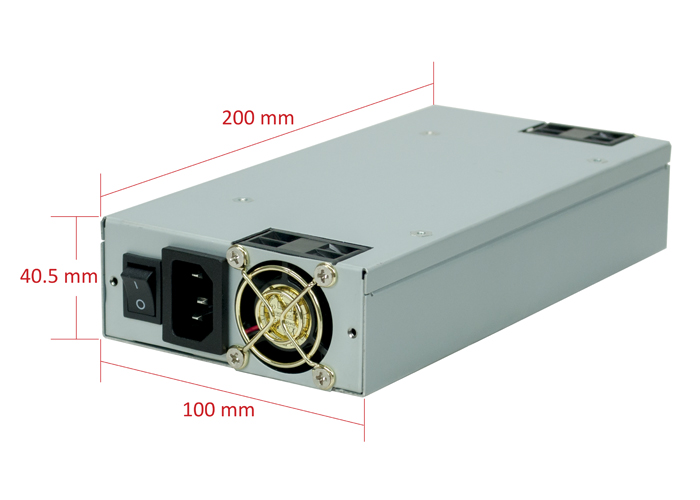

Athena Power standard 1U single 500W power supply, AP-U1ATX5020FEP8, designed for the standard 1U form factor (Length: 200mm). The AP-U1ATX5020FEP8 500 Watt PSU provides a compact fit alongside flexibility for small industrial computer rackmounts.  The EPS-12V 8Pin and the addtional P4-12V 4Pin connector gives full support for core 2 dual processors.  The AP-U1ATX5020FEP8 also includes the Active PFC (Power Factor Correction) and remote ON/OFF function for high efficiency and reliability.  With its internal front and rear 40mm ball-bearing fan and thermal fan speed control, allow this PSU to handle heavy server loads.

Active PFC and Full Range Input

The Active PFC and Full Range function provides a smarter PSU.  Able to detect the differences of wattage that is needed to power up your system, you can be rest assure it will provide and maintain the most suitable power needed.

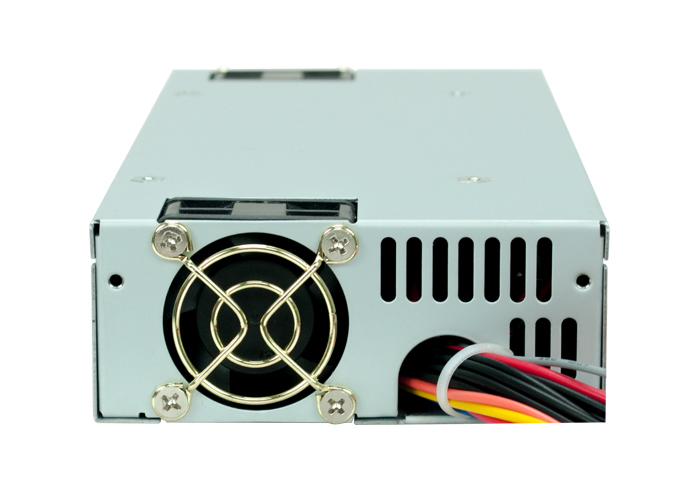

Dual Fan

With its dual fan features located at the front and back of the power supply, the rear fan intakes the heat that is produced inside the system and pushes it through the front fan.  This design allows the power supply to be able to take 100% of the heat that is generated by the interior system and pushes it out of the server/system. While some other PSU fans work differently, this dual fan design is targeted to maintain a reliable source of power and keeping the system cool.  Some may second guess this dual fan feature because it will increase noise volumes, but with its thermal fan speed control it will detect the amount of heat generated by the computer and spin accordingly.

Smart Auto Fan Speed Controller

Thermal fan speed control will detect the amount of heat generated by the computer. Using the speed controller to detect heat levels, it will automatically adjust the fan speed accordingly and the need to worry about heat levels, of a PSU, becomes almost non-existent.


80PLUS Certification

Saving energy has become an important factor when choosing the appropriate power supply. 1U 500 Watt is one of the latest 1U  PSU’s that brandishes 80PLUS Bronze certification.  Providing efficiency during max and low loads, this PSU lives up to the standards of today’s world.
