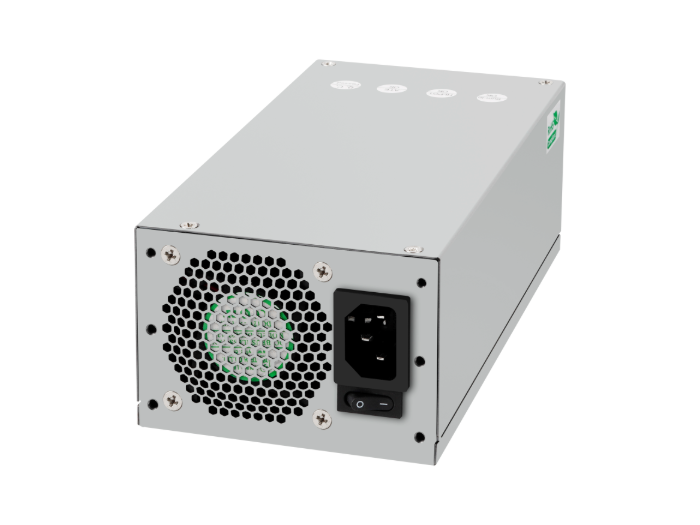

Athena Power AP-2UMK10P868 – 1000W 80 PLUS Platinum Industrial ATX 3.1 Power Supply
The AP-2UMK10P868 is a high-performance 1000W industrial-grade power supply, designed for professional workstations, industrial PCs, edge servers, and GPU-intensive systems. Compliant with ATX 3.1 and PCIe 5.0 standards, it features a 12V-2x6 (H++) GPU connector to reliably power high-performance GPUs.
Key Features:
-
1000W continuous output with low ripple
-
80 PLUS Platinum efficiency (up to 92%)
-
Dual smart thermal-controlled fans for reliable cooling
-
Universal input: 100–240V AC
-
Multiple connectors: 24-pin ATX, 8-pin CPU, 8(4+4)-pin CPU, PCIe 6+2 pin ×2, 12V-2x6 (H++), SATA/Molex outputs
-
IEC/UL 62368-1 certified, RoHS, CE/FCC compliant
-
5-Year Limited Manufacturer Warranty
Applications: AI/deep learning workstations, industrial computing, edge servers, high-end gaming, GPU compute platforms
The AP-2UMK10P868 combines high power, efficiency, and reliability in a compact industrial ATX 3.1 form factor, making it ideal for GPU-intensive and mission-critical systems.
AP-2UMK10P868 - AP-2UMK10P868
| Model | AP-2UMK10P868 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Category | 1U / 2U | ||||||||||||||
| Product Sub Category | 2U EPS Power Supplies 62368 | ||||||||||||||
| Output Power | 1000 Watts | ||||||||||||||
| Input Votage | 100 ~ 264 Volts AC | ||||||||||||||
| Frequency | 47/63 Hz | ||||||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less than 20 ms | ||||||||||||||
| Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| Connectors |

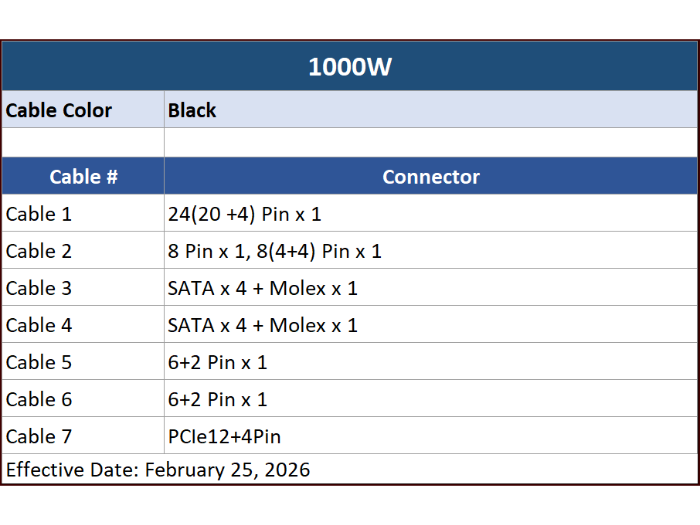

ATX24(20 +4) Pin x 1 8 Pin CPU x 1, (4+4) CPU x 1 SATA x 4 + Molex 4 Pin x 1 SATA x 4 + Molex 4 Pin x 1 PCIe 6+2 Pin x 1 PCIe 6+2 Pin x 1 12V-2x6 (H++) Cable Color: Black |
||||||||||||||
| Dimension | (D x W x H) 200 x 100 x 69.7 mm / 7.87 x 3.94 x 2.75 in | ||||||||||||||
| Weight | 5.00lb | ||||||||||||||
| Warranty | 5 Year Manufacture Limited Warranty |
