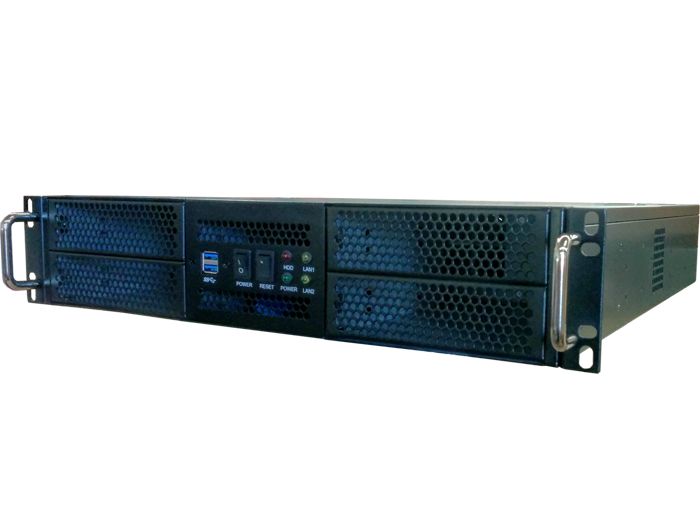

Athena Power RM-2UWIN525R is a 2U rack-mount server chassis which is integrated with a 2-Port USB3.0 and space-saving designed, also with following main features:

• Space-Saving Design: 23" Depth (Chassis dimensions: D 23" x W 17-1/8" x H 3-1/2").

• Motherboard Form Factor Compatibility: This rack mount chassis can be installed a motherboard form factor from Mini-ITX (6.7" x 6.7"), MicroATX (9.6"x9.6") up to ATX (12"x9.6"). In addition, in order to meet the modern server system configurations, this chassis is also featured 7 low-profile PCI expansion slots.

• Drive Bay Configuration:
  • External 5.25" Drive Bay: 4.
  • Internal 3.5" Drive Bay: 3 at middle-front.

• Power Supply Unit Form Factor Compatibility: This chassis can install a 2U single IPC power supply unit or a 2U Micro Redundant IPC power supply unit in rear of chassis. Athena Power 2U single and 2U micro redundant power supply unit series are one of the top-of-the-line IPC PSU in the market.  Athena Power PSU is safety certified and high efficiency certified.

• Thermal Solutions: This chassis features 3 central 80mm ball bearing fans with quick-install fan brackets individually; also a fan power distribution board to power chassis cooling fans. Furthermore, in order to have better thermal solutions, this chassis has plenty of ventilation holes.

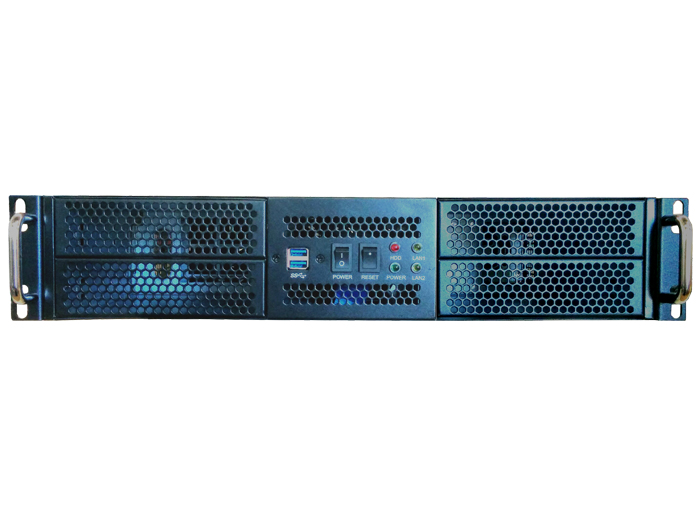

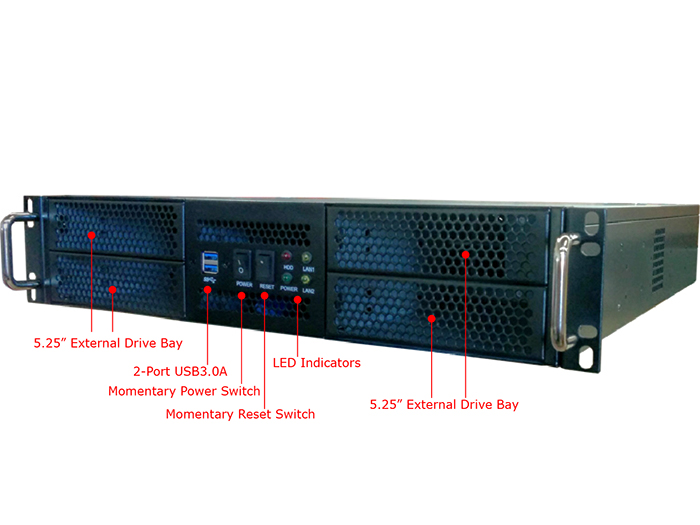

• Front Panel Features:
  • A 2-Port USB3.0(/2.0).
  • LED Indicators: HDD activity, POWER ON, LAN#1 and LAN#2.
  • Switches: An ATX POWER on/off & RESET momentary rocker switches.
