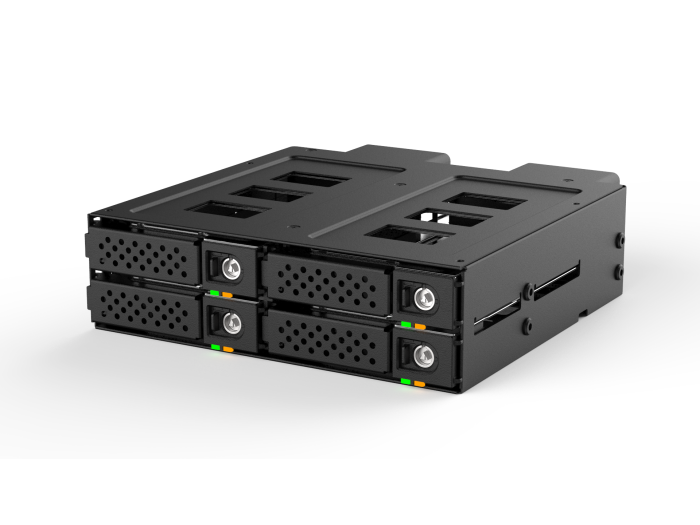

Upgrade your storage solution with our high-performance NVMe SSD/HDD backplane. This backplane is designed to fit in a 5.25" bay and can accommodate up to four 2.5" NVMe HDDs or SSDs. The metal frame with stainless HDD carriers and worry-free sliding-in carrier design ensures easy installation and swapping of drives. The backplane features a security metal keylock to keep your drives safe and secure.
Key Features:
- 5.25" Bay size backplane for 4 x NVMe HDD/SSD
- Metal frame with stainless HDD carriers
- Worry-free sliding-in carrier design for easy installation and swapping of drives
- 1 x 5.25" bay backplane for 4 x 2.5" NVMe HDD(SSD) U.2 solution
- 2 x 15pin power connector + 4 x Mini SAS HD (SFF-8643)
- Supports U.2 Gen3 32Gbps (full performance) and Gen4 64Gbps performance
- Vibration reducing springs on each HDD tray
- 2 x 4020 cooling fans for super cooling & fast heat sink
- LED Indication: Power On : Solid green, Orange blinking :Accessing
- With super 4020 fan x 2 for best air ventilation
- Dimensions: 159 x 145.8 x 41.6mm, Weight: 0.62 kgs
Upgrade your storage solution today with our high-performance NVMe SSD/HDD backplane and enjoy faster data transfer speeds and improved system performance.
Note:
- The hot-swappable functionality of our device products is dependent on the host motherboard, controller, and RAID card. If the host supports hot-swapping, our devices can also support this feature. However, if the host does not support hot-swapping, our devices will not be able to offer this functionality.
-
This product does not have a RAID control chipset. It can support RAID functions, but the availability of RAID functionality is dependent on the host RAID control card or motherboard.
BP-U24NVME8525 - BP-U24NVME8525
| Model | BP-U24NVME8525 |
|---|---|
| Product Category | Internal |
| Product Sub Category | 5.25" Bay NVMe U.2 Interface |
| Form Factor | 5.25" |
| Interface | NVMe U.2 |
| Plug and Play | Plug and Play |
| Trayless Design | No |
| RAID Level | 0/1/5/10 |
| Supported HDD Size | 4 x 2.5" up to 15mm |
| Hot-Swappable | Hot-Swappable |
| Cage Color | Black |
| Cooling Fan | 2 X 4020 cooling fans |
| Material | Metal frame with SS HDD carrier |
| Power Connector | 2 X 15-pin |
| HDD Connection | Input 4 x NVMe U.2, output 4 X Mini SAS HD(SFF-8643) |
| Transfer Rate | 32Gbps/64Gbps |
| RoHS Ready | RoHS Ready |
| Door & Lock | Security Metal Key Lock |
| Dimension | 159 x 145.8 x 41.6mm |
| Weight | 1.36lb |
| Warranty | 1 Year Manufacture Limited Warranty |
