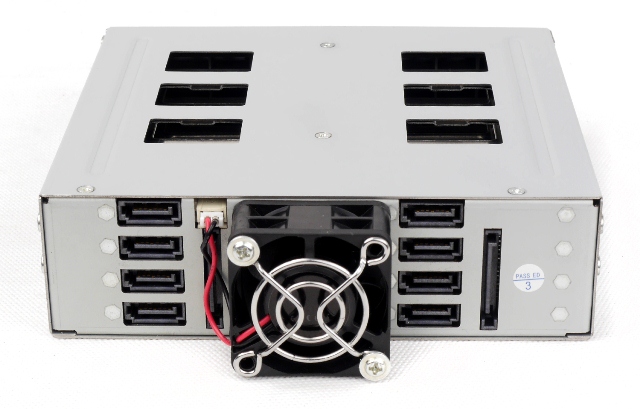

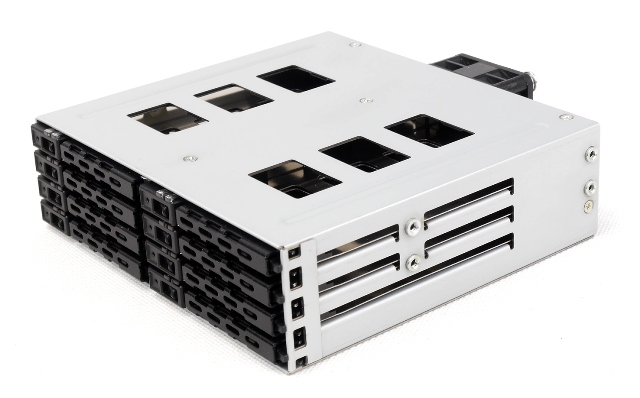

BP-SATA1825S - BP-SATA1825S
1*5.25" Drive-Bay to 8*2.5" HDD (T=7.5mm, SATA I/II/III) Hot-Swap Backplane Module.
BP-SATA1825S - BP-SATA1825S
| Model | BP-SATA1825S |
|---|---|
| Product Category | Internal |
| Product Sub Category | SATA Interface |
| Form Factor | 5.25" |
| Interface | SATA Interface |
| Trayless Design | No |
| Supported HDD Size | 2.5" SATA I/II/III Drive. Thickness up to 7.5mm |
| Hot-Swappable | Hot-Swappable |
| Cage Color | Silver/Black |
| Cooling Fan | 1 x 40mm (Rear) |
| Material | Steel |
| Power Connector | 2 x SATA 15Pin |
| HDD Connection | 8 x SATA 7Pin |
| Transfer Rate | Up to 6Gb/s |
| RoHS Ready | RoHS Ready |
| Door & Lock | Mechanical Lock (on each HDD tray) |
| Dimension | (LxWxH) 7" x 5.75" x 1.65" |
| Weight | 4.00lb |
| Warranty | 1 Year Manufacture Limited Warranty |
