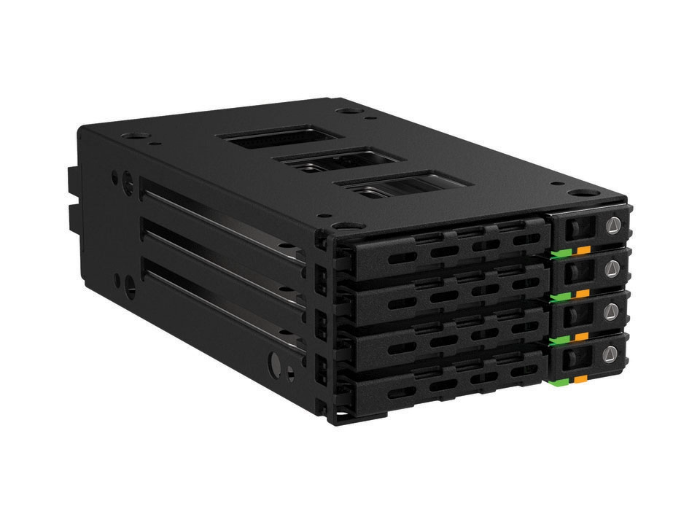

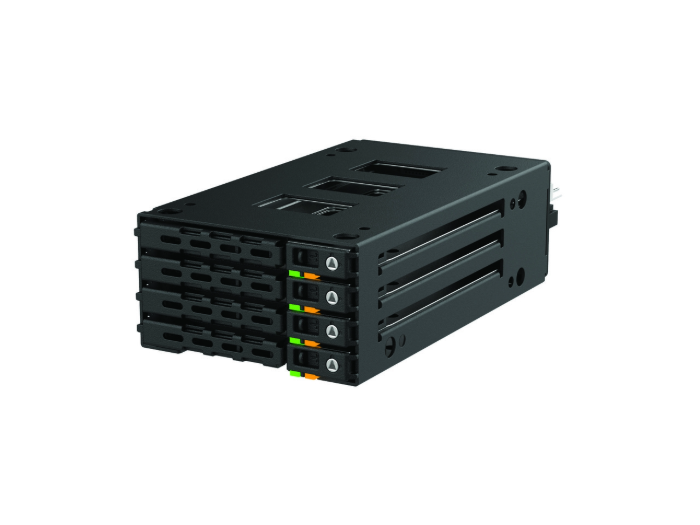

Athena Power BP-422525SAC12 – 4-Bay 2.5" SATA/SAS HDD/SSD Enclosure (Half 5.25" Drive Bay)

The Athena Power BP-422525SAC12 is a high-performance 4-bay 2.5" SATA/SAS HDD/SSD enclosure designed for industrial PCs, NAS appliances, DVR/NVR systems, and space-constrained workstation or server environments. It provides reliable, space-efficient storage with secure drive trays and durable metal construction.

This enclosure fits one half 5.25" drive bay and supports 4 × 2.5" SATA or SAS drives (up to 7 mm height), offering SATA/SAS 6G/12G performance with maximum transfer rates up to 12 Gbps. The hot-swappable, plug-and-play trays make drive installation and maintenance simple (system dependent). Security is ensured with a triangle metal keylock, and the fanless design allows silent operation in industrial environments.

Specifications:

• Drive Support: 4 × 2.5" SATA/SAS HDD/SSD (up to 7 mm / 0.28 in height)

• Form Factor: Half 5.25" drive bay

• Interface: Input: 4 × SATA 7+15 pin, Output: 4 × SATA 7 pin

• Maximum Transfer Rate: Up to 12 Gbps

• Power Connector: 1 × SATA 15-pin power connector

• Cooling: Fanless / passive

• Material: Metal enclosure with stainless steel trays

• Color: Black

• Dimensions: 140.5 × 72.5 × 40 mm / 5.53 × 2.85 × 1.57 in

• Weight: 0.4 kg / 0.88 lbs

• Commercial Standards: RoHS compliant

Key Features:

• Supports 4 × 2.5" SATA or SAS HDD/SSD for flexible storage expansion

• Hot-swappable, plug-and-play trays for easy maintenance

• Secure metal keylock to protect drives

• Durable metal enclosure with stainless steel trays for long-term reliability

• Fanless design for silent operation in industrial environments

• Ideal for industrial PCs, NAS appliances, DVR/NVR systems, and space-constrained servers/workstations

The BP-422525SAC12 delivers a reliable, professional-grade storage solution for high-performance computing environments, combining flexible drive support, secure design, and easy maintenance in a compact half 5.25" drive bay form factor.
