BP-31225SACAVL - BP-31225SACAVL

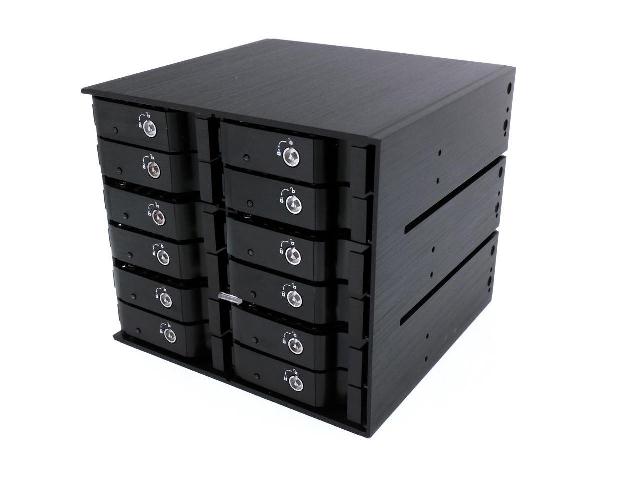

Athena Power BP-31225SACAVL is a hot-swappable HDD backplane module designed for converting 3 x 5.25" bay to 12 x 2.5" HDD. It supports 2.5" HDD/SSD form factor up to SATA-III / SAS-II and 15mm thickness on each drive.
Product Key Features:
- Support 12 x 2.5" HDD/SSD up to SATA-III and SAS-II. (Each drive thickness up to 15mm)
- Data transfer rate up to 6Gb/s.

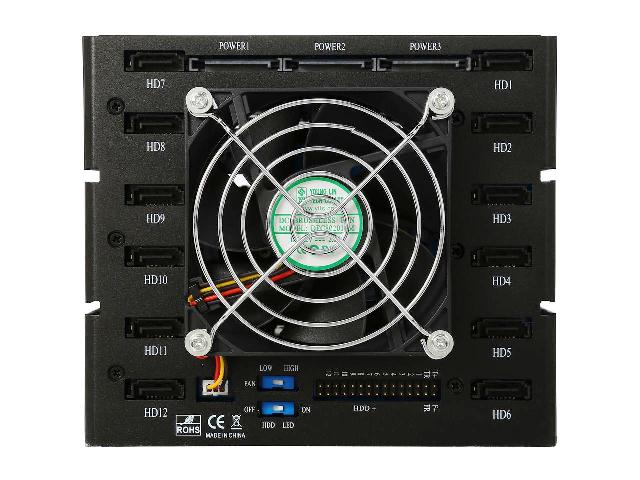

- 1 x 80mm exhaust cooling fan at cage rear. (with fan speed High/Low switch)
-
LED Indicators:

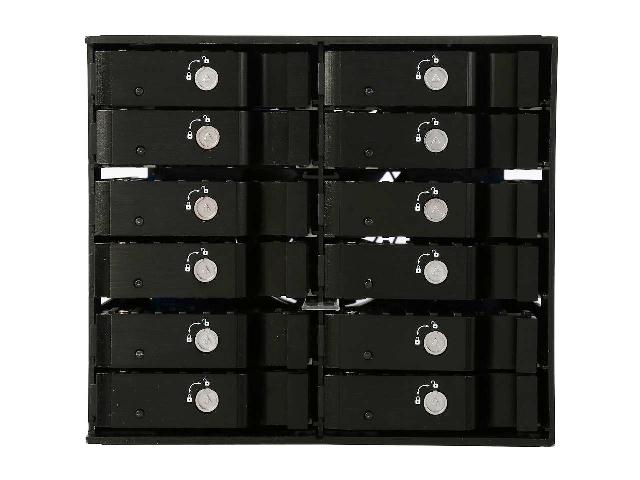

- HDD Power On & Access on each HDD tray bezel. (with HDD LED on/off switch)
- Fan & Temperature Status on cage bezel.
BP-31225SACAVL - BP-31225SACAVL
| Model | BP-31225SACAVL |
|---|---|
| Product Category | Internal |
| Product Sub Category | 5.25" Bay SATA/SAS Interface |
| Form Factor | 3 x 5.25" |
| Interface | SATA/SAS Interface |
| Trayless Design | No |
| Supported HDD Size | 2.5" HDD/SSD x 12 (Support each drive height / thickness up to 15mm) |
| Hot-Swappable | Hot-Swappable |
| Cage Color | Black |
| Cooling Fan | 80mm x 1 (Exhausting fan at cage rear) |
| Material | Aluminum cage, HDD tray & bezel |
| Power Connector | SATA 15Pin x 3 |
| HDD Connection | SATA 7Pin x 12 |
| Transfer Rate | Up to 6Gb/s |
| RoHS Ready | RoHS Ready |
| Door & Lock | Metal Key Lock (on each HDD tray bezel) |
| Dimension | (D x W x H) 6.4" x 6.9" x 5" |
| Warranty | 1 Year Manufacture Limited Warranty |
